DA-FDB-4E-WPC-17

Pre-connectorized Fiber Optic Distribution Box

Dawnergy’s DA-FDB-4E-WPC-17 Pre-connectorized Fiber Distribution Box is a wiring line device of user distributions in FTTH system, it provides protection and management for fiber cable, and be used for terminating, cable branching, cross connection.

DA-FDB-4E-WPC-17 Pre-connectorized Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for FTTx network building.

Suitable for Mini type PLC splitter

Features

• Advanced structure design, easy operation and reasonable routing.
• Material: PP.
• Moisture proof, waterproof, dust-proof, anti-aging.
• Protection level up to IP68.
• 1 waterproof joint for PG11, 4 pre-connected adapters.
• Installation method: pole-mounted, aerial-mounted, wall-mounted, hand hole, man hole.

Applications

• FTTH access network
• Telecommunication network

Specifications

Splicing Tray

Item	Splicing tray
Dimensions (mm)	94 X 83X11
Net weight (kg)	0.02
Color	RAL7035
Material	PC+ABS
Splicing capacity of a tray(cores)	12 (2 layers of heat shrinkable protective sleeve)
Splitter capacity of a tray (PCS)	1 (PLC 1X2, 1X4, 0.9mm fiber,60x7x4mm)
Maximum (PCS)	1
Default (PCS)	1

Fiber Routing

Installation

• Wall-mounted installation
• Drill 4 holes in the wall according to the dimension in specification, place the expansion plugΦ7.5*40, place the box to match up the holes and use screws to fasten.

• Pole-mounted installation (option)
• Pass the hoop ring through the slot of the back plate and fix it on the telecommunication pole

• Aerial-mounted installation

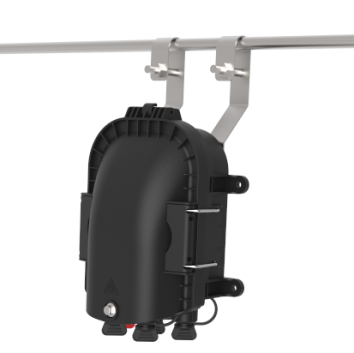

• Hang the hook on the messenger, and tighten the bolts and nuts of the hook.

Mini SC Water-proof Adapter

Mini SC Fiber Connector Installation

Ordering Information

DA-FDB-4E-WPC-17

Black; PP or PC+ABS; With the adaptor output ports for max. 4 pieces of Pre-connected Adapter, 1pc splicing trays, 1 cable input port; Dimensions (mm): 168*138*78 mm; Wall mounting accessories included (pole mounted kits is option).

Note: PLC splitter is option
