DA-FDB-8V-PA-17 Fiber Optic Distribution Box

Dawnergy’s DA-FDB-8V-PA-17 Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features

• Total enclosed structure.
• Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP54.
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
• Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
• Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
• Cabinet can be installed by the way of wall-mounted.

Applications

• FTTH access network
• Telecommunication network

Specifications

Dimension(mm)

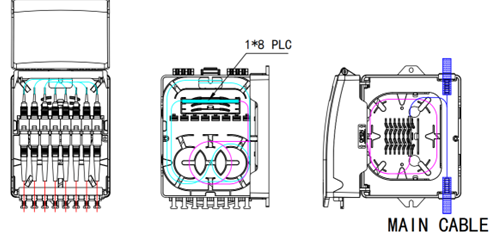

Fiber Routing

Installation

• Wall-mounted installation

Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten

Package

1 PC in a bubble bag,220*200mm；

1 PC in a small carton,163*111*68mm, gross weight is 0.35 kg；

40 PCS in a big corrugated carton,465*340*360 mm, gross weight is 15 kg.
