DA-FDB-16A2-PA-17 Fiber Optic Distribution Box

Dawnergy’s fiber optic distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Suitable for Mini type PLC splitter

Features

• Total enclosed structure.
• Material: PP, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
• Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
• Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
• Support pole/wall mounting, aerial cable mounting installation, suitable for both indoor and outdoor use.

Applications

• FTTH access networks
• Telecommunication networks
• Local Area Networks

Specifications

1. Environmental specification

Working temperature:-40℃～+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa～106Kpa

2. Thunder-proof technical specification

• The grounding device is isolated with the cabinet, isolation resistance is less than 2 MΩ/500V (DC)
• The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover

Cable Ways

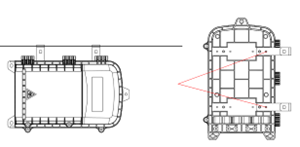

(Pic 2)

Installation

1. Wall-mounted installation

Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten. (Pic 3)

2. Pole-mounted installation

Fix 1 set of the pole ring to the telecom pole (Pic 4)

3.The overhead structure

Tie the two installed on the chassis of the overhead hung on the wire, and then bolted, prevent the case fall off. (Pic 5)

Pic 3 Wall mounted installation Pic 4 Pole mounted installation

Pic 5 The overhead structure
