DA-FOSC-IM144-J0968B-3

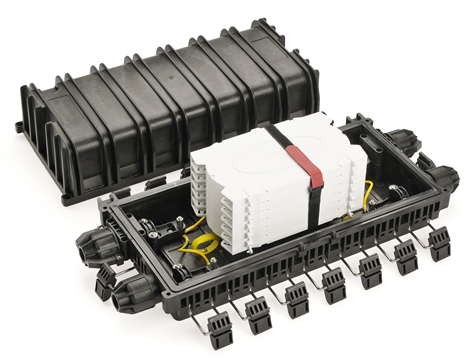

Dome Type Fiber Optic Splice Closure

Dawnergy's fiber optic splice closure is a kind of multi-purpose optical cable connection product, which can connect and divide optical fiber. The box can be applied to a variety of optical cable (loose sleeve, skeleton, ribbon, etc.) and can be installed in a variety of environments (overhead, wall, pipe-line, manhole, underground), and for a variety of connecting methods (distribution, bridge, branch, etc.).

Features

• Structure: Compact, watertight and no screw design, open easily and user friendly
• Capacity: support maximum 144 cores
• Diameter: total 4 ports and suitable for Φ 10 to 18 mm cable
• Sealing: Box sealed by buckles around and cables ports sealed by nuts to meet IP68
• Installation: Aerial mounting, Manhole mounting, Wall mounting and underground

Applications

• FTTH access networks
• Telecommunication network

Specifications

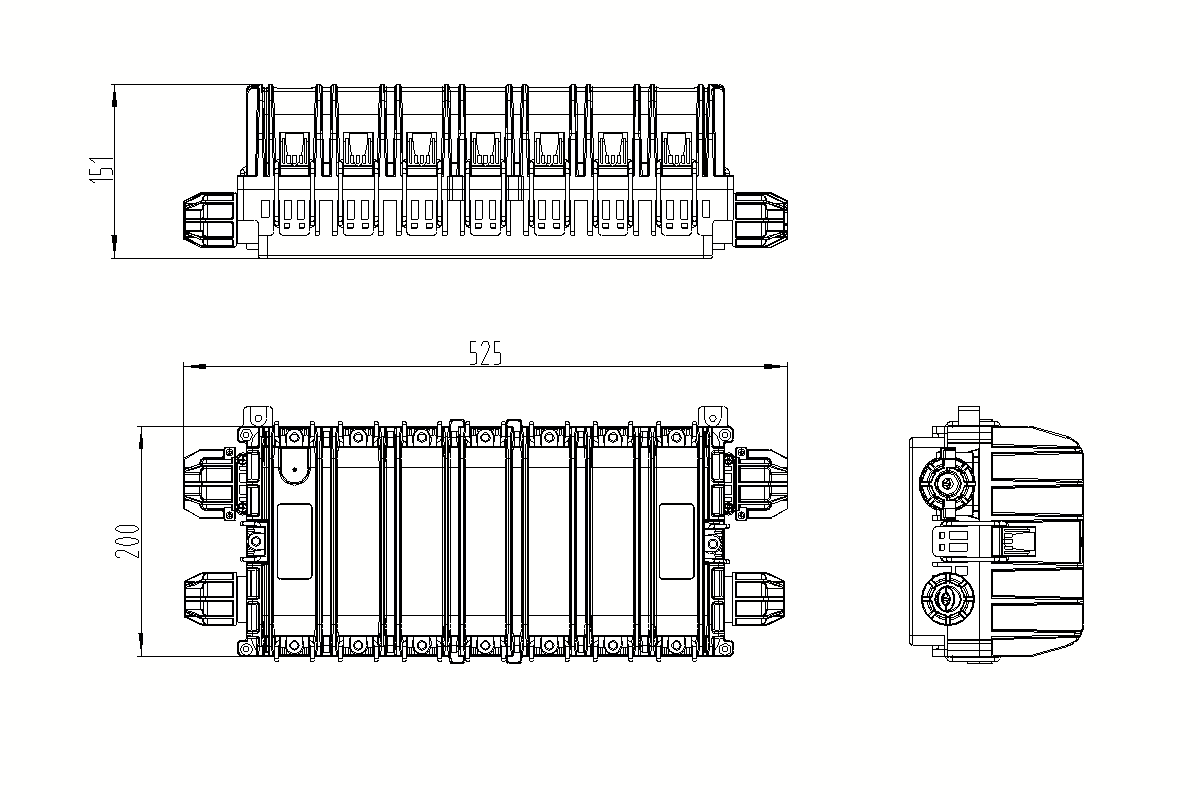

Structure Drawing (mm)

Standard accessories(Pictures for reference only)

Item	Description	Qty	Picture
1	Insulation tap	1 roll
2	Splicing protective tube	1 bag
3	Nylon cable tie	1 bag
4	Choke plug	2 pcs
5	Installation manual	1 set
6	EVA tube	1 roll

Optional accessory

Item	Description	Qty	Picture
1	Air valve	1 set
2	Aerial mounting fittings	1 set
3	Wall mounting fittings	1 set
4	Grounding lead	1 set

Ordering Information

DA-FOSC-IM144-J0968B-144C-3

Dome type, Mechanical sealing; 144fibers, 6 trays of 24fibers/tray included; 4 cable ports; Max capacity: 144fibers; material: PP+GF, dimensions (mm): 525(L)×200(W)×151(H); Option accessories for wall, aerial mounting kits and air valve.
