Product Description:
The cabinet is made of durable SUS304 material, which is known for
its corrosion resistance and toughness. It is powder coated for
additional protection, ensuring that it can withstand harsh
environmental conditions and provide long-lasting performance. The
cabinet's operating temperature range of -40°C to +60°C makes it
suitable for outdoor use, where extreme temperatures are common.

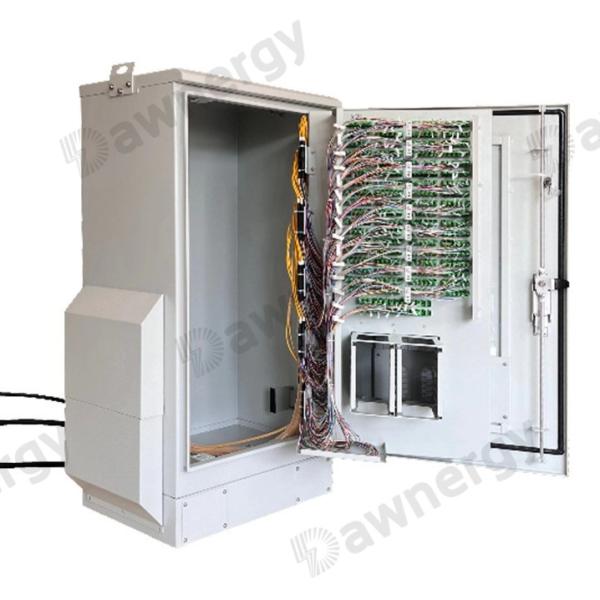

The DA-OCC-MS-432F Fiber Distribution Cabinet is designed to
provide easy installation and management of fiber optic cables.
With a pass-through capacity of 192, no additional splicing is
required, reducing installation time and cost. The cabinet features
a modular design, allowing for easy upgrading and maintenance, and
ensuring that it can meet the changing needs of your network.
In summary, the Fiber Distribution Cabinet DA-OCC-MS-432F is a
reliable, high-quality product that provides efficient management
and protection of fiber optic cables. Its durable construction,
powder coating, and wide operating temperature range make it
suitable for use in a variety of environments, while its large
capacity and modular design ensure that it can meet the needs of
your network. With no additional splicing required, installation is
easy and cost-effective, making it an ideal choice for any
application where fiber optic cables are used.
Features:
- Product Name: Fiber Distribution Cabinet
- Dimensions: 1020×585×355 (mm) (with Base)
- Pass Through Capacity: 192
- Grounding: With Grounding Cable And Aluminum Grounding Mark
- Cabinet Material: SUS304
- Cable Type: Outdoor Non-armored, Outdoor Armored And Loose Tube
- Deployment time is minimized
- High Density Splitters are loaded and pre-assigned into cabinet
- Transmission System Fiber Distribution Cabinet
Technical Parameters:
| Cabinet Material | SUS304 |
| Pass Through Capacity | 192 |
| Operating Temperature (°C) | -40~ +60 |
| Cable Entrances | 5 |
| Max. No. of Cores | 432 |
| Maximum Number of PLC Splitters Modules | 14 |
| Cable Type | Outdoor Non-armored, Outdoor Armored and Loose Tube |
| Protection Level | IP65 |
| Installation Type | Ground |
| Dimensions | 1020×585×355 (mm) (with Base) |
Terminations designed, tested and certified to Telcordia GR-326
Guarantee: 0.3 dB insertion loss or less, exceeding industry
standards
Outdoor Non-armored, Outdoor Armored and Loose Tube
Applications:
The High Capacity 192 Pass Through Street Pre Assigned FDH Cabinet
with 14 PLC Splitter Modules is designed to accommodate a maximum
of 432 cores, making it ideal for large-scale fiber optic networks.
The cabinet is made of high-quality SUS304 material, which provides
excellent protection against harsh weather conditions.
With its pass through capacity of 192, this cabinet is perfect for
outdoor non-armored, outdoor armored, and loose tube cable types.
The installation type is ground, which makes it easy to deploy in
different locations.
The High Capacity 192 Pass Through Street Pre Assigned FDH Cabinet
with 14 PLC Splitter Modules is suitable for various product
application occasions and scenarios. It can be used in urban and
rural areas, commercial buildings, schools, hospitals, and other
public places.
Deployment time is minimized since the cabinet has a side access
door for easy installation and maintenance. This feature saves time
and effort for technicians and ensures that the network is up and
running in no time.
In conclusion, the High Capacity 192 Pass Through Street Pre
Assigned FDH Cabinet with 14 PLC Splitter Modules is a reliable and
efficient product that meets the demands of modern fiber optic
networks. Its compatibility with different cable types and its high
pass through capacity make it suitable for various applications.
Support and Services:
The Fiber Distribution Cabinet is a high-capacity fiber optic
termination and distribution system designed for outdoor use in
FTTH networks. It is available in various sizes and configurations
to meet different deployment requirements. The product technical
support and services for this product include:
- Product installation guidance and training
- Troubleshooting and technical assistance
- Warranty and repair services
- Product customization and engineering solutions
- Product documentation and software updates
- Product testing and certification
Our team of experienced technical experts is dedicated to providing
comprehensive support and services to ensure optimal product
performance and customer satisfaction.
