DA-FOSC-IM120-417-3

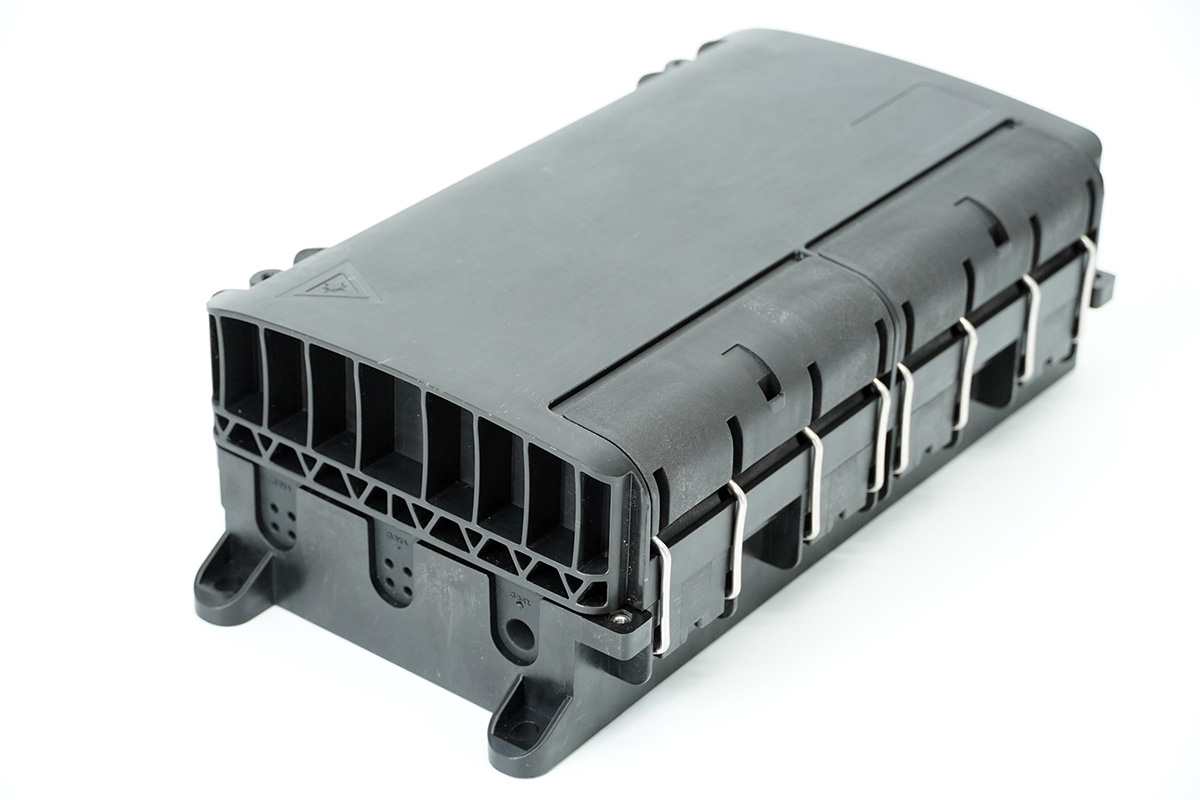

In-Line Type Fiber Optic Splice Closure

Dawnergy's DA-FOSC-IM120-417-3 fiber optic splice closure is a kind of multi-purpose optical cable connection product, which can connect and divide optical fiber. The closure can be applied to a variety of optical cable (loose sleeve, skeleton, etc.) and can be installed in a variety of environments (overhead, wall, pipe-line, manhole, underground), and for a variety of connecting methods (distribution, bridge, branch, etc.)

Features

• Sealing: page-turning structure, sealed with hasp and vulcanized silicone tape.
• Product Performance: This product meets IEC related standards;
• Protection grade: IP68.

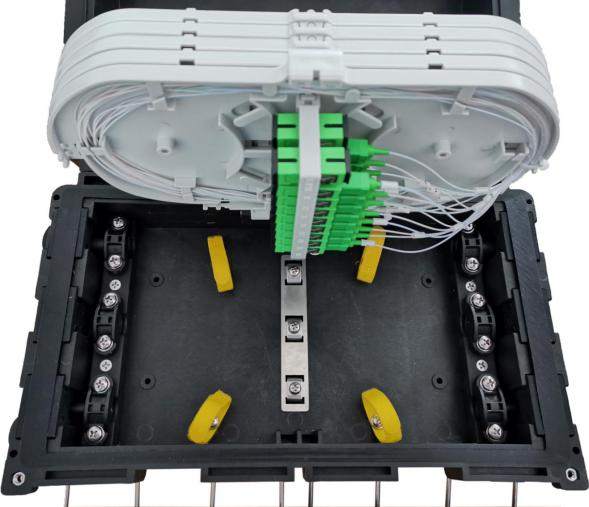

• Good space provides the placement of optical fiber connectors and the storage of remaining optical fibers, so that the optical fiber connectors are protected from environmental influences.

Applications

• FTTH access networks
• Telecommunication networks
• CATV networks
• Local Area Networks

Specifications

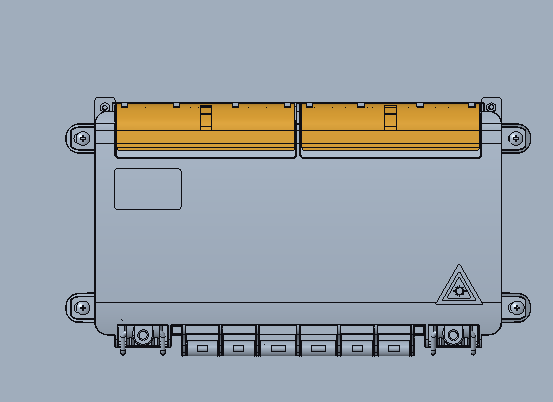

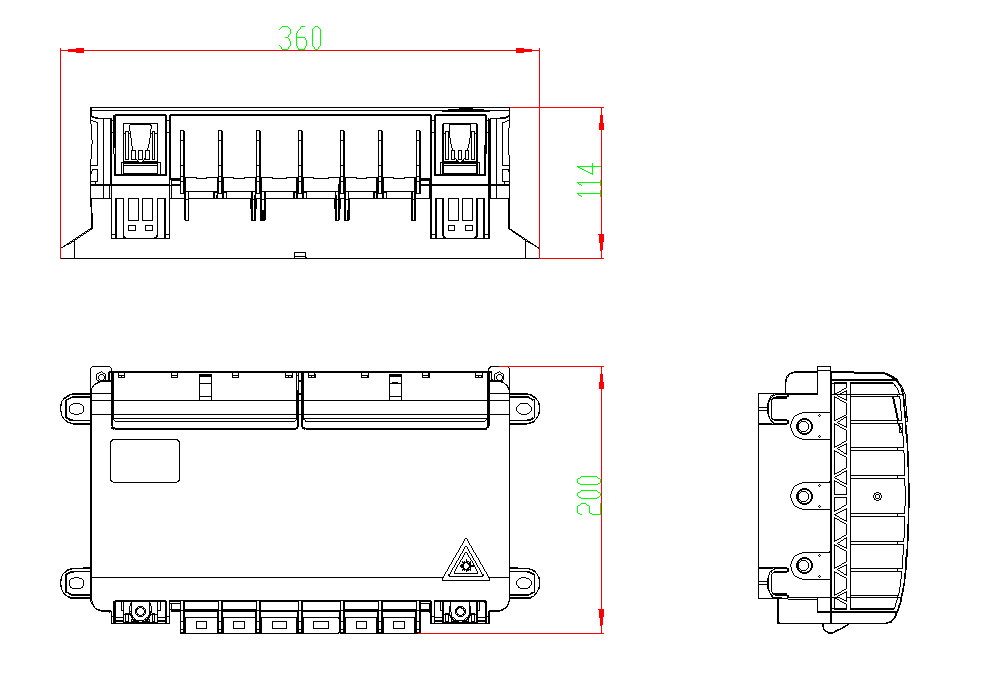

Structure Drawing

Installation

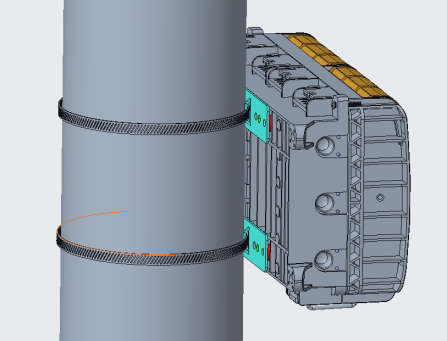

Aerial Mounting Pole Mounting Wall Mounting

Standard Package (Picture only for refer)

Item	Description	Qty	Picture
1	Box Body	1 set
2	Body Sealing Ring	1 set
3	24F Splice Tray	4 pcs
4	Wall Mounting Kit	1 set
5	Aerial Mounting kit	1 set
6	Pole mounted kits	1 set
7	Cable Cleaning Tissue	1 bag
8	Silicone Grease	1 bag
9	Splice Sleeve	48/96 PCS
10	Air Valve	1 set
11	Insulation tape	1 roll
12	EVA protective Tube	1m
13	Nylon tie	20 pieces
14	Installation Manual	1 set
15	Unvulcanized sealing tape	1 pc
16	Silica gel	1 bag

Optional Accessory (Picture only for refer)

Item	Description	Qty	Picture
1	Ф3mmx4 rubber sealing	on-demand
2	Ф3-7mm rubber sealing	on-demand
3	Ф8-12mm rubber sealing	on-demand
4	Ф12-16mm rubber sealing	on-demand
5	Ф18-20mm rubber sealing	on-demand
6	Ф8-12mm plastic plug	on-demand
7	Ф12-16mm plastic plug	on-demand

Ordering Information

Ps: The actual fiber core number shall be subject to the contract
