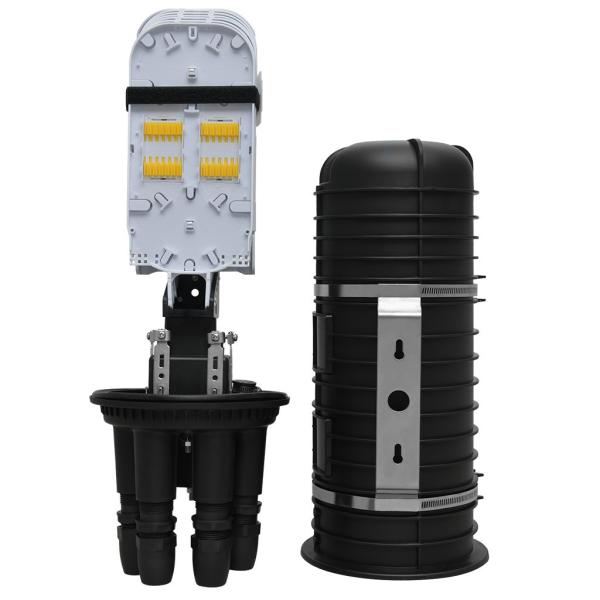

DA-M8-JX-48 Dome Type Fiber Optic Splice Closure

DA-M8-JX-48 Dome Type Fiber Optic Splice Closure is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent theoptic fibers from the influence of outdoor environment.

Dome-to-base design; up to 6 pieces splice trays, hinge for access of any splice without disturbing others trays; Fast and

reliable sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in

overhead, pole/wall mounting or directly buried

Specification:

Structure:

Technical Parameter:

1. Working Temperature: -40 degrees centigrade~+65 degrees centigrade
2. Atmospheric Pressure: 62~106Kpa
3. Axial Tension: >1000N/1min
4. Flatten Resistance: 2000N/100 mm (1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV(DC)/1min, no arc over or breakdown
7. Temperature recycle: under -40℃~+65℃,with 60(+5)Kpa inner pressure, in 10cycles; Inner pressure shall decrease less than 5 Kpa when closure turn to normal temperature.
8. Durability:25 years
