2~48F Fiber Optic Pigtail Bundle

Ask Lasest Price
Brand Name :	Dawnergy
Model Number :	DA-SC-XXM-SM-B-0.9L
Certification :	ANATEL,CE,ROHS
Price :	0.33
Payment Terms :	T/T, L/C, D/A, D/P
Supply Ability :	100000pcs per day

Add to Cart

Product Details
Company Profile

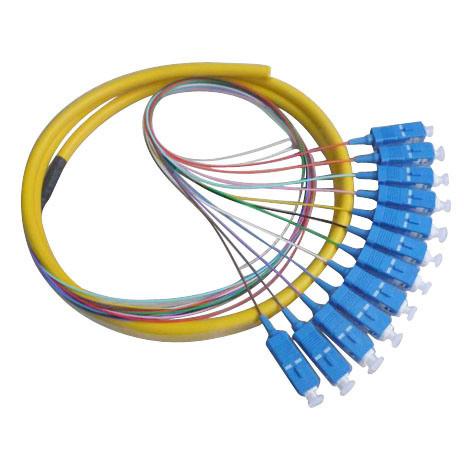

2~48F Fiber Optic Pigtail Bundle

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

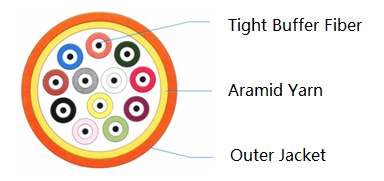

Indoor Bundle Fiber Optic Cable Construction

Features

Excellent stripping performance of tight buffer fiber
Aramid yarn as strength member providing good tensile strength

Applications

Indoor cable distribution
Backbone cable distribution in a building

Specifications

Parameters	Specifications
Cable Type	Indoor bundle fiber optic cable
Fiber Type	SM (G652D, G657A) or MM (OM1~OM5)
Insertion Loss (dB)	≤ 0.3
Return Loss (dB)	≥ 50 (UPC), ≥ 60(APC), ≥ 30 (MM)
Connector Type	SC/FC/LC/ST/E2000 or customized
Fiber Cores	2~12cores
Pigtail Outer Dimension	0.9mm
Material of Outer Jacket	PVC or LSZH
Cable Length	1m,3m,10m or customized
Pigtail Length	0.5m or customized
Durability (dB)	△IL≤ 0.2, 500 times plugging
Repeatability (dB)	≤ 0.2
Temperature Range (℃)	-40 ~ +85

Ferrule End Face Inspection Criteria

Defects	Zone A (Area Near Core) ≤40um	Zone B (Cladding) 40~125um	Zone C (Coating) 125~250um
Scratch (width)	None	Light scratch (white): None	>3um: None
		Dark scratch (black): None
Pits & Irremovable material (Diameter)	None	≥2um: None <2um: 2pcs allowed	≥10um: None <10um: total<20um
Chipping (Diameter)	None
Crack/dust/contamination	None
Epoxy ring	Width<2um, total length≤1/2 fiber diameter

Ferrule End Face Geometry Parameters

Parameters	UPC	APC
Radius of Curvature	10~25mm	5~12mm
Fiber Undercut or Protrusion	≤ 100 nm	≤ 100 nm
Apex Offset	≤ 50 μm	≤ 50 μm
Polishing Angle		8 +/- 0.3 degree
