Indoor Cable 4 Fibers LSZH

Ask Lasest Price
Brand Name :	DAWNERGY
Model Number :	4 Core Indoor
Certification :	CE/TELCORDIA
Price :
Payment Terms :	T/T, L/C, D/A, D/P
Supply Ability :	10,000KM PER DAY
Delivery Time :	10-20 work days

Add to Cart

Product Details
Company Profile

Indoor Cable 4 Fibers LSZH

Indoor optical cable 4 Fibers G652D

Fiber Parameters

No.	Items		Unit	Specification
No.	Items		Unit	G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
1	Mode Field Diameter	1550nm	μm	10.4±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λ_cc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.36
9	Attenuation(max.)	1550nm	dB/km	≤0.22

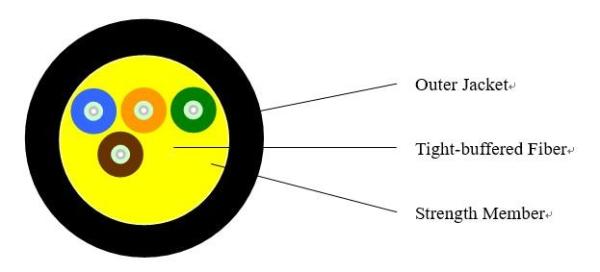

Cable Parameters

Items		Specifications
Fiber Count		4
Tight-buffered Fiber	Dimension	850µm±50µm
	Material	LSZH
	Color	Blue,Orange,Green,Brown
Strength Member		Water-blocking aramid yarns
Outer Jacket	Dimension	5mm±0.2mm
	Material	OFNR PVC
	Color	Black

Mechanical and Environmental Characteristics

Items	Unite	Specifications
Tension(Long Term)	N	400
Tension(Short Term)	N	800
Crush(Long Term)	N/10cm	300
Crush(Short Term)	N/10cm	1000
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	℃	-10～+50
Operating Temperature	℃	-20～+60
Storage Temperature	℃	-20～+60
