    8 Cores 700M Span Aramid Yarn ADSS Optic Fiber Cable

    Ask Lasest Price
    Brand Name : DAWNERGY
    Model Number : ADSS
    Certification : CE/ VDE/ TELCORDIA
    Price :
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 10000KM PER DAY
    Delivery Time : 15 DAYS
    • Product Details
    • Company Profile

    8 Cores 700M Span Aramid Yarn ADSS Optic Fiber Cable

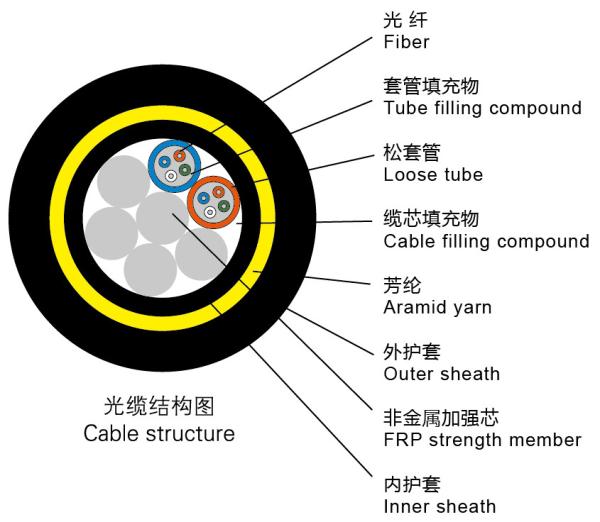

    Cable Structure
    Type of fiberG.655C
    No. of fiber4
    No. of Tube2
    No. of fiber/tube12
    Fiber colorblue/orange/green/brown/grey/white/red/black/yellow/violet/pink/natural
    Tube colorblue/orange
    Inner sheath thickness1.3mm
    Inner sheath materialMDPE
    Outer sheath thickness2.0mm
    Outer sheath materialAT,69KV,
    Crush Resistance220/110 N/cm
    Wind speed95 Km/h
    Arrow (SAG)2%
    Cable diameter16.2mm
    Cable sectional area206mm2
    Cable weight200kg/km
    Cable printXXXXM Dawnergy ADSS 24 G.655C SPAN 1000M 2019 LOTE NUMBER….
    Cable Performances
    RTS24000N
    MAT9100N
    EDS6000N
    Min. statics bending radius245mm
    Min. dynamic bending radius405mm
    Young modulus7.07GPa
    Thermal expansion coefficient1.58E-05
    Installing temperature-10℃~+40℃
    Operating temperature-40℃~+70℃
    Fiber Performances
    Core non-circularity≤ 6%
    Cladding diameter125.0±0.7μ m
    Core/Cladding concentricity error≤ 0.8μ m
    Cladding non-circularity≤ 2.0%
    Coating diameter245±10μ m
    Cladding/Coating concentricity error≤ 12μ m
    Attenuation coefficient1550nm≤0.21dB/km
    Zero dispersion slope≤ 0.092ps/(nm2•km)
    Polarization dispersion≤ 0.20 ps/√km
    Mode field diameter1550nm:10±0.7μ m
    cut-off wavelength1450nm
    Packing
    Size∅1450*W1020mm, ∅1400*W800mm(2820M)
    MaterialWood
