Armored Figure 8 Aerial Cable

Ask Lasest Price
Brand Name :	DAWNERGY
Model Number :	GYTC8S6B1
Certification :	CE/ VDE/ TELCORDIA
Price :	160USD
Payment Terms :	T/T, L/C, D/A, D/P
Supply Ability :	10000KM PER DAY
Delivery Time :	15 DAYS

Add to Cart

Product Details
Company Profile

Armored Figure 8 Aerial Cable

Armored Figure 8 Aerial Cable

Specifications

Configuration	Loose tube with max 6 fibers per tube, filled with thixotropic compound Armor: PE coated corrugated steel tape Messenger wire: galvanized single steel wire Outer sheath: HDPE, black
Temperature Range	Storage and transport -40 to +60°C	Installation -20 to +60°C	Operation -40 to +60°C
Standards	IEC 60793-1, IEC 60793-2, IEC 60794-3-20
Customer Reference	Common standard

Dimensions

Number of fibers		6
Loose tubes x fibers		1x6
Loose tubes/Dummies		1/0
Outer diameter (W*H)	mm	(6.0±0.5)*(10.8±0.5)
Weight	kg	60±15%

Note: sheath thickness not consider ripcord portion, sizes and values without tolerances are nominal values
The weight of zinc coating of uncoated wire surface shall be more than 20g/m²
Mechanical Properties

Max. tensile load		Short term: 1000N;long term:200N
Crush resistance / 10 cm		Short term:1000 N;long term:200N
Bending radius (installation)		20x cable Ø
Bending radius (operation)		10x cable Ø

See Point 6: Test Methods

Optical Fiber

Standard	ALF^® ITU-T G.652D
Optical	Fibre attenuation .. cabled	@ 1310 nm ≤0.36 dB/km	@ 1550 nm ≤0.22 dB/km
	Mode field diameter (MFD)	9.2 ± 0.4 µm@1310nm
	Zero dispersion wavelength	1300~1324 nm
	Zero dispersion slope	≤0.092 ps/nm² ∙km
	Polarisation mode dispersion (PMD)	≤0.2 ps/√km
	Cable Cut-off wavelength	≤1260 nm
Geometric	Outer diameter	245 ± 10 µm
	Cladding diameter	125 ± 1.0 µm
	Core/clad concentricity error	≤0.6 µm
	Cladding non-circularity	≤1.0 %
Mechanical	Proof stress	≥0.69 Gpa

Test Methods

Test	Conditions	Acceptance criteria
Tensile strength IEC 60794-1-2 E1	Tensile strength: see Point 3 Sample length: ≥ 50 m, Duration: 1 min	Fiber strain≤0.6% △α ≤0.1dB during test No damage
Crush resistance IEC 60794-1-2 E3	Crush: see Point 3 Test duration: 1 min, number of test: 3	△α ≤0.05dB after test No damage
Impact IEC 60794-1-2 E4	Impact energy: 5 J R = 300 mm, number of places/tests: 3	△α ≤0.1dB during and after test No damage
Torsion IEC 60794-1-2 E7	Sample length: 2 m ± 180°, 5 cycles	△α ≤0.1dB during and after test No damage
Repeated Bend IEC 60794-1-2 E6	Bending radius: 20x cable Ø 25 cycles	No damage
Temperature cycling IEC 60794-1-2 F1	-40℃→ +60℃ 12 hours at each step, 2 cycles	△α≤0.15 dB/km and reversible No damage
Water penetration IEC 60794-1-2 F5	Sample length: 3 m Water column height: 1 m Test duration: 24 h	No water leakage(exclude messenger part)

All optical measurements at 1550 nm (G652D) or 1300 nm (OM2/OM3/OM4)
Logistics

Cable type

Length

Tolerance

4km

-5% / +5%

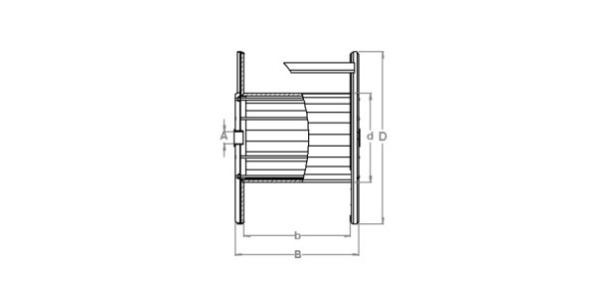

D*d*B in cm

GYXTC8S-6G.652D

Drum Type

Dimensions

Weight

Wood

95*50*75

290kg

Dimensions including protection. Indicative values, actually delivered drum sizes and weights may deviate. Cable ends sealed with caps
