G652D Aerial Fiber Optic Cable

Ask Lasest Price
Brand Name :	DAWNERGY
Model Number :	GYTS
Certification :	CE/TELCORDIA
Price :
Payment Terms :	T/T, L/C, D/A, D/P
Supply Ability :	10,000KM PER DAY
Delivery Time :	10-20 work days

Add to Cart

Product Details
Company Profile

G652D Aerial Fiber Optic Cable

Technical data

No. of cable		6	12	24
Fiber Model		G.652D

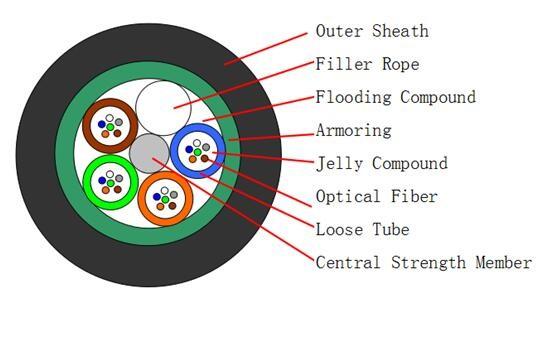

Design(StrengthMember+Tube&Filler)		1+5
Central Strength Member	Material	Steel Wire
	Diameter(±0.05)mm	1.4
Loose Tube	Material	PBT
	Diameter(±0.06)mm	1.65
	Thickness(±0.03)mm	0.25
Filler Rope	Material	LDPE
	Diameter(±0.06)mm	1.65
Water Blocking layer(Material)		Flooding Compound
Armoring	Material	Steel Strip
	Thickness(±0.03)mm	0.20
Outer Sheath	Material	MDPE
	Thickness(±0.2)mm	1.6
Cable Diameter(±0.2)mm		8.9
Cable Wetght(±5.0)kg/km		82
Min. bending radius	Without Tension	10.0×Cable-φ
	Under Maximum Tension	20.0×Cable-φ
Temperature range (℃)	Installation	-20~+60
	Transport&Storage	-40~+70
	Operation	-40~+70

The properties of single mode optical fiber (ITU-T Rec. G.652.D)

Item	Specification
Fiber type	Single mode
Fiber material	Doped silica
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm	£ 0.35 dB/km £ 0.32 dB/km £ 0.21 dB/km £ 0.24 dB/km
Point discontinuity	£ 0.05 dB
Cable cut-off wavelength	£ 1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	£ 0.092 ps/(nm2.km)
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	£3.5 ps/(nm. km) £5.3 ps/(nm. km) £18 ps/(nm. km) £22 ps/(nm. km)
PMDQ (Quadrature average*)	£0.2 ps/km1/2
Mode field diameter @ 1310 nm	9.2±0.4 um
Core / Clad concentricity error	£ 0.5 um
Cladding diameter	125.0 ± 0.7 um
Cladding non-circularity	£1.0%
Primary coating diameter	245 ± 10 um
Proof test level	100 kpsi (=0.69 Gpa), 1%

Application

NO.	Item		Requirement
1	Allowable Tensile Strength	Short Term	1500 N
		Long Term	600 N
2	Allowable Crush Resistance	Short Term	1000 (N/100mm)
		Long Term	300 (N/100mm)

Main mechanical & environmental performance test

Item

Test Method

Acceptance Condition

Tensile Strength

IEC 794-1-2-E1

- Load: Short term tension

- Length of cable: about 50m

- Fiber strain £ 0.33%

- Loss change £ 0.1 dB @1550 nm

- No fiber break and no sheath damage.

Crush Test

IEC 60794-1-2-E3

- Load: Short term crush

- Load time: 1min

- Loss change £ 0.05dB@1550nm

- No fiber break and no sheath damage.

Impact Test

IEC 60794-1-2-E4

- Points of impact: 3

- Times of per point: 1

- Impact energy: 5J

- Loss change £ 0.1dB@1550nm

- No fiber break and no sheath damage.

Temperature Cycling Test

YD/T901-2001-4.4.4.1

- Temperature step:

+20oC→-40oC→+70oC →+20oC

- Time per each step: 12 hrs

- Number of cycle: 2

- Loss change £ 0.05 dB/km@1550 nm

- No fiber break and no sheath damage.

Sheath marking

The optical fiber drop cable shall have sequentially numbered length marking at intervals of approximately 1 meter. The starting number of ordering length for any coil shall begin whit zero meter. The accuracy of the measurement of lenth marking shall be held within the limits of ±1%.

a) Manufacturer’s name

b) Type of wire

c) Year and month of manufacture

d) Length marking each meter along the wire
