G657A Figure 8 Aerial Cable

Application / Construction

Identification	GYTC8S-24B1.3
Application	Aerial Figure-8 outdoor cable

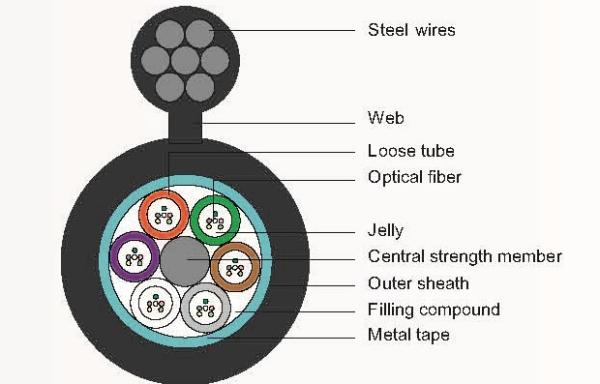

Cross Section (not to scale)	24 fibers
	24 fibers
Configuration	Loose tube with max 12 fibers per tube, filled with thixotropic compound Stranded loose tubes, white fillers (if necessary) Central strength member made of steel wire or FRP Cable strand: Cable jelly filling compound Armor: PE coated corrugated steel tape Messenger wire: stranded steel wire Outer sheath: HDPE, black
Temperature Range	Storage and transport -50 to +70°C	Installation -20 to +60°C	Operation -40 to +60°C
Standards	IEC 60793-1, IEC 60793-2, IEC 60794-3-20
Specification No.	GL20200811289
Customer Reference	Common standard

Dimensions

Number of fibers		24
Loose tubes x fibers		4x6
Loose tubes/Dummies		4/1
Loose tube Ø (±0.1)	mm	1.6
Central strength member	mm	1.4
Messenger wire(±0.1)	mm	7*1.0
Outer sheath thickness(±0.2)	mm	1.5
Outer diameter (W*H)	mm	(8.8±0.5)*(15.6±0.5)
Weight	kg	220±15%

Note: sheath thickness not consider ripcord portion, sizes and values without tolerances are nominal values

Mechanical Properties

Max. tensile load		Short term: 3000N;long term:1000N
Crush resistance / 10 cm		Short term:1000 N;long term:300N
Bending radius (installation)		20x cable Ø
Bending radius (operation)		10x cable Ø

See Point 6: Test Methods

Marking

Fiber Colors	1	2	3	4	5	6
	Blue	Orange	Green	Brown	Gray	White

Tube Colors	1	2	3	4	5	/
	Blue	Orange	Green	Brown	Filler	/

Outer Sheath: black, ink jet, marking in 1 meter intervals as follows:

Dawnergy 2020 GYTC8S-24 B1.3 <batch ID> <meter marking >

Optical Fiber

Standard	ZTT-ALF^® ITU-T G.652D
Optical	Fibre attenuation .. cabled	@ 1310 nm ≤0.36 dB/km		@ 1550 nm ≤0.22 dB/km
	Mode field diameter (MFD)	9.2 ± 0.4 µm@1310nm
	Chromatic dispersion	≤3.5 ps/nm ∙km 1310nm	≤18 ps/nm ∙km 1550nm		≤22 ps/nm ∙km 1625nm
	Zero dispersion wavelength	1300~1324 nm
	Zero dispersion slope	≤0.092 ps/nm² ∙km
	Cable Cut-off wavelength	≤1260 nm
Geometric	Outer diameter	245 ± 10 µm
	Cladding diameter	125 ± 1.0 µm
	Core/clad concentricity error	≤0.5 µm
	Cladding non-circularity	≤0.8 %
Mechanical	Proof stress	≥0.69 Gpa

Test Methods

Test

Conditions

Acceptance criteria

Tensile strength

IEC 60794-1-21 E1

Tensile strength: see Point 3

Sample length: ≥ 50 m, Duration: 1 min

△α ≤0.1dB during test
No damage

Crush resistance

IEC 60794-1-21 E3

Crush: see Point 3

Test duration: 1 min, number of test: 3

△α ≤0.1dB during test
No damage

Impact

IEC 60794-1-21 E4

Impact energy: 4.5 J

R = 300 mm,Impact points: 5,

Impact frequency 3/point

△α ≤0.1dB during test
No damage

Repeated bending

IEC 60794-1-21 E6

Bending diameter: 20x cable Ø

Load:15kg; 30 times

△α ≤0.1dB during test
No damage

Torsion

IEC 60794-1-21 E7

Sample length: 1 m

± 180°, 10 cycles,load 25kg

△α ≤0.1dB during test
No damage

Bend

IEC 60794-1-21 E11A

Bending radius: 12x cable Ø

4 bends, 3 cycles

△α ≤0.05dB after test
No damage

Temperature cycling

IEC 60794-1-22 F1

-40℃→ +70℃

24 hours at each step, 2 cycles

△α≤0.1dB/km and reversible
No damage

Water penetration

IEC 60794-1-22 F5

Sample length: 3 m

Water column height: 1 m

Test duration: 24 h

No water leakage from cable part (except for messenger part)

Drop test

IEC 60794-1-22 E14

Test length:30cm

Temperature range: 70±2℃

Duration: 24hours

No filling compound drop out

All optical measurements at 1550 nm

Logistics

Cable type

Length

Tolerance

4km

-5% / +5%

D*d*B in cm

GYTC8S-24 B1.3

Drum Type

Dimensions

Weight

Wood

125*50*75

962kg

Dimensions including protection. Indicative values, actually delivered drum sizes and weights may deviate. Cable ends sealed with caps
