16 Core Fiber Optic Distribution Box

Ask Lasest Price
Brand Name :	Dawnergy
Model Number :	DA-FDB-16A-A-2
Certification :	CE ROHS ANATEL
Price :	12USD
Payment Terms :	D/P, T/T, L/C, D/A
Supply Ability :	5000K per day
Delivery Time :	7-14 days

Add to Cart

Product Details
Company Profile

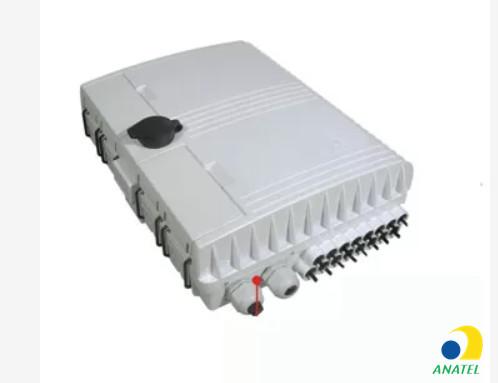

16 Core Fiber Optic Distribution Box

Dawnergy’s fiber optic distribution boxes are widely used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting and distribution can be done in these boxes. These series of boxes provide solid protection and management for the FTTx networks.

Specifications

Model

Description

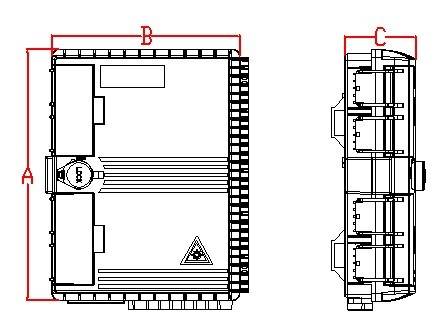

Size(Pic 1)

Max Capacity

Installation Size

(Pic 2)

Cable ways

A*B*C(mm)

PLC

D*E (mm)

DA-FDB-16B-PP-2

Distribution Box

295*220*85

2 pcs 1*8 PLC/

1 pcs 1*16 PLC

155*82

Not cup-joint / cup-joint

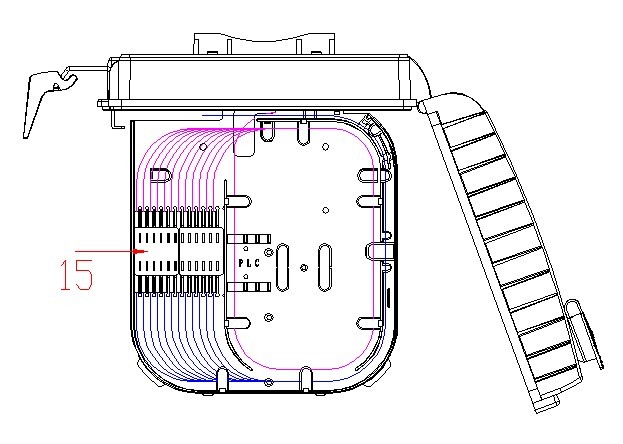

Fiber Routing

1.Lid；2.Lock coat；3.Lock；4.Seal gasket；5.Splicing flap plate；6.Adaptor holder；7.Adaptor；8.Lid lock joint bracket；9.Lid lock clip；10.Base；11. Cable strengthen mound layer；12. Joint(Option)；13.Lock panel；14.PLC mounting position；15. hot tube fixer

Installation
