Low Polarization 1x2 5/95 Fused Fiber Coupler

Ask Lasest Price
Brand Name :	DAWNERGY
Model Number :	LFC-102-P-13/15-5-1-09-10-N-09-10-N
Certification :	CE ROHS
Price :	2.6USD
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	10K per day
Delivery Time :	7days

Add to Cart

Product Details
Company Profile

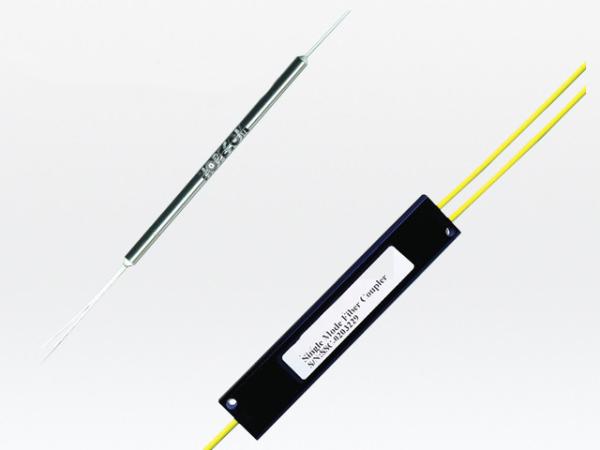

Low Polarization 1x2 5/95 Fused Fiber Coupler

1X2 FBT COUPLER 1310 1550 FUSED FIBER SPLITTER 5/95 LOW INSERTION LOSS LOW POLARIZATION

We mainly operate passive products in the field of optical cables and optical communication wiring, including: optical cables, fiber jumpers, pigtails, splitters, fiber distribution boxes, optical cable splice boxes, optical cross boxes, ODF, communication outdoor Cabinets, data center cabinets, etc. Domestically, we have a large market share in the centralized procurement of China Telecom, China Mobile, China Unicom and China Tower. At the same time, we are also a qualified supplier for major internationally renowned equipment manufacturers and fiber optic cable manufacturers. Our products are also widely used in special networks such as radio broadcast, television, electric power and military.

Low Insertion Loss

Low Polarization Sensitivity

Excellent Environmental Reliablity

Type	1x2(2x2)-S		1x2(2x2)-D		1x2(2x2)T
Operating Wavelength	1310 or 1550		1310 and 1550		1310,1490 and 1550
Bandwidth(nm)	±15		±40		1310/1550±40,1490±20
Grade Coupling Ratio	Max. Insertion Loss (dB)
Grade Coupling Ratio	P	S	P	S	P	S
50/50	3.4	3.5	3.5	3.6	3.6	3.7
40/60	4.50/2.70	4.80/2.90	4.70/2.70	4.90/2.90	4.80/2.90	5.00/3.00
30/70	5.80/2.00	6.10/2.10	6.00/1.90	6.30/2.10	6.20/2.00	6.40/2.20
20/80	7.70/1.25	8.00/1.35	7.90/1.40	8.40/1.50	8.20/1.50	8.50/1.60
10/90	11.20/0.75	11.30/0.85	11.30/0.80	12.00/0.85	11.50/0.80	12.50/0.85
5/95	14.50/0.45	14.60/0.55	14.60/0.55	14.90/0.60	14.70/0.60	15.20/0.65
3/97	16.70/0.35	17.00/0.45	16.70/0.35	17.25/0.45	17.20/0.40	17.80/0.45
2/98	18.50/0.30	19.00/0.35	18.65/0.30	19.20/0.40	19.00/0.35	19.50/0.40
1/99	21.50/0.30	22.20/0.35	21.80/0.30	22.50/0.35	22.00/0.35	22.80/0.40
PDL (dB)	≤0.10	≤0.15	≤0.15	≤0.20	≤0.15	≤0.20
Directivity(dB)	≥50
Operation Temperature(℃)	-40 to +85
Store Temperature(℃)	-40 to +85
Note: Connector loss is excluded in the above specification

Configuration		1X2(2X2)
Dimensions(ΦXL)(mm)	250μm bare fiber	Φ3.0X50
	900μm loose tube	Φ3.0X54
	900μm/2mm/3mm loose tube	90X20X10

Code

Port

Grade

Wavelength

Coupling Ratio

Package

Input Fiber

Input

Length

Input Connector

Output Fiber

Output Length

Output Connector

LFC

102=1x2

202=2x2

P=P grade

S=S grade

13= 1310nm

15= 1550nm

13/15= 1310/1550nm

13/14/15= 1310/1490/1550nm

50=50/50

40=40/60

30=30/70

20=20/80

10=10/90

5=5/95

3=3/97

2=2/98

1=1/99

1=Φ3.0X50mm

2=Φ3.0X54mm

3=90X20X10mm

SF=250um single fiber

09=0.9mm pigtail

20=2.0mm pigtail

30=3.0mm pigtail

05=0.5M

10=1.0M

15=1.5M

20=2.0M

…

N=None

SCA=SC/APC

SCU=SC/UPC

LCA=LC/APC

LCU=LC/UPC

FCA=FC/APC

FCU=FC/UPC

X=others

SF=250um single fiber

09=0.9mm pigtail

20=2.0mm pigtail

30=3.0mm pigtail

05=0.5M

10=1.0M

15=1.5M

20=2.0M

…

N=None

SCA=SC/APC

SCU=SC/UPC

LCA=LC/APC

LCU=LC/UPC

FCA=FC/APC

FCU=FC/UPC

X=others
