1x2 10/90 Fbt Coupler

    Buy cheap 1x2 10/90 Fbt Coupler from wholesalers

    Buy cheap 1x2 10/90 Fbt Coupler from wholesalers
    • Buy cheap 1x2 10/90 Fbt Coupler from wholesalers

    1x2 10/90 Fbt Coupler

    Ask Lasest Price
    Brand Name : DAWNERGY
    Model Number : LFC-102-P-13/15-10-1-09-10-N-09-10-N
    Certification : CE ROHS
    Price : 2.6USD
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10K per day
    Delivery Time : 7days
    • Product Details
    • Company Profile

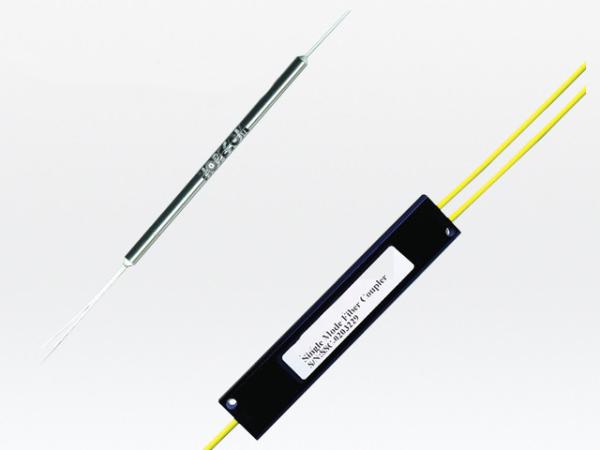

    1x2 10/90 Fbt Coupler

    1X2 FBT COUPLER 1310 1550 FUSED FIBER SPLITTER 10/90 LOW INSERTION LOSS LOW POLARIZATION


    Dawnergy is a young and energetic team, just like its name, a combination of DAWN and ENERGY. The company was founded in 2015 jointly invested with Letel Communications (stock code: 833609), focusing on overseas markets. With leading R&D and customization capabilities in the industry, the philosophy of customer first and services first, and Letel's 30-year manufacturing experience, within just five years, we have brought to more than 60 countries around the world various Chinese communication products, which have been widely praised by users.


    Low Insertion Loss

    Low Polarization Sensitivity

    Excellent Environmental Reliablity


    Type1x2(2x2)-S1x2(2x2)-D1x2(2x2)T
    Operating Wavelength1310 or 15501310 and 15501310,1490 and 1550
    Bandwidth(nm)±15±401310/1550±40,1490±20
    Grade Coupling RatioMax. Insertion Loss (dB)
    PSPSPS
    50/503.43.53.53.63.63.7
    40/604.50/2.704.80/2.904.70/2.704.90/2.904.80/2.905.00/3.00
    30/705.80/2.006.10/2.106.00/1.906.30/2.106.20/2.006.40/2.20
    20/807.70/1.258.00/1.357.90/1.408.40/1.508.20/1.508.50/1.60
    10/9011.20/0.7511.30/0.8511.30/0.8012.00/0.8511.50/0.8012.50/0.85
    5/9514.50/0.4514.60/0.5514.60/0.5514.90/0.6014.70/0.6015.20/0.65
    3/9716.70/0.3517.00/0.4516.70/0.3517.25/0.4517.20/0.4017.80/0.45
    2/9818.50/0.3019.00/0.3518.65/0.3019.20/0.4019.00/0.3519.50/0.40
    1/9921.50/0.3022.20/0.3521.80/0.3022.50/0.3522.00/0.3522.80/0.40
    PDL (dB)≤0.10≤0.15≤0.15≤0.20≤0.15≤0.20
    Directivity(dB)≥50
    Operation Temperature(℃)-40 to +85
    Store Temperature(℃)-40 to +85
    Note: Connector loss is excluded in the above specification

    Configuration1X2(2X2)
    Dimensions(ΦXL)(mm)250μm bare fiberΦ3.0X50
    900μm loose tubeΦ3.0X54
    900μm/2mm/3mm loose tube90X20X10

    CodePortGradeWavelengthCoupling RatioPackageInput Fiber

    Input

    Length

    Input ConnectorOutput FiberOutput LengthOutput Connector
    LFC

    102=1x2

    202=2x2

    P=P grade

    S=S grade

    13= 1310nm

    15= 1550nm

    13/15= 1310/1550nm

    13/14/15= 1310/1490/1550nm


    50=50/50

    40=40/60

    30=30/70

    20=20/80

    10=10/90

    5=5/95

    3=3/97

    2=2/98

    1=1/99

    1=Φ3.0X50mm

    2=Φ3.0X54mm

    3=90X20X10mm

    SF=250um single fiber

    09=0.9mm pigtail

    20=2.0mm pigtail

    30=3.0mm pigtail

    05=0.5M

    10=1.0M

    15=1.5M

    20=2.0M


    N=None

    SCA=SC/APC

    SCU=SC/UPC

    LCA=LC/APC

    LCU=LC/UPC

    FCA=FC/APC

    FCU=FC/UPC

    X=others

    SF=250um single fiber

    09=0.9mm pigtail

    20=2.0mm pigtail

    30=3.0mm pigtail

    05=0.5M

    10=1.0M

    15=1.5M

    20=2.0M


    N=None

    SCA=SC/APC

    SCU=SC/UPC

    LCA=LC/APC

    LCU=LC/UPC

    FCA=FC/APC

    FCU=FC/UPC

    X=others
