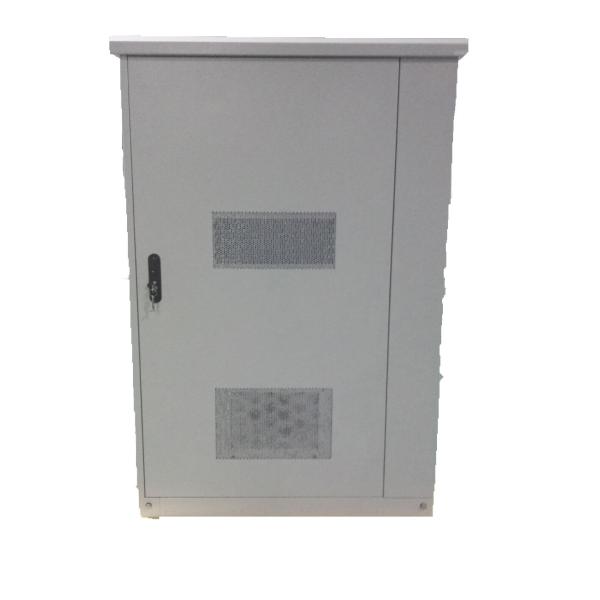

Outdoor Telecom Cabinet for Wireless Mobile Station TYG06-HE01-L2

Features

• Two-warehouse body, Device warehouse/MDF warehouse;
• A independent Battery warehouse in Device warehouse;
• 19 inch device installation;
• Cable splicing and protection function;
• Heat exchanger cooling system on the door of Device warehouse.

Specification

• Cable

• Type: bundle cable
• Inlet number:7
• Inlet direction: bottom of the body

• Equipment installationspace: 20U
• Distribution capacity

• Internal capatity:1056 lines (66×16-line System module)
• Subscriber capacity:1080 lines (108×10-line Subscriber module)

• Battery capacity: 4×12V 100AH batteries
• Dimension: (height )1400mm×(width) 900mm×(depth)700mm

• Environmental specification

• Operating temp. range: -45℃～+50℃
• Storage temp. range: -45℃～+55℃
• Relative humidity: 5%～90%(no condensation)
• Atmospheric pressure: 62 kpa～101 kpa (approximation 0m～5000m)
• Solar radiation intensity: radiation intensity 1120×(1±10%)W/m2
• Grounding resistance: ≤10Ω
• Heat-exchange: 120W/K

Dawnergy is an ISO qualified fiber optic solution provider. With solid production capacity, leading R&D strength and strong customization capabilities in the industry, we have supplied fiber optic products to over 65 countries around the world.

Our main products are: Fiber Optic Cables, Fiber Optical Splitters,Fiber Optic Patch Cord, Pigtails,WDM Modules, Fiber Distribution Boxes, Fiber Optic Sockets,Optical Distribution Cabinets/Hubs,Outdoor Telecom Cabinets, Optical Distribution Frames,Network Rack cabinets, etc. Domestically, our shareholders have a large market share in the centralized procurement of China Telecom, China Mobile, China Unicom and China Tower. At the same time, we are also a qualified supplier for major internationally renowned equipment manufacturers and fiber optic cable manufacturers. Our products are also widely used in special networks such as radio broadcast, television, electric power and military.

Specifically in the international market, through direct supply, partnering with local distributors, or cooperating with internationally renowned communication solution providers, our products have been widely used in the FTTH networks of the following operators: TELEFONICA, TIM , STC, BSNL, TOT, CAT, PLDT, TELKOM INDONESIA, TM, NEPAL TELECOM, AIRTEL, etc.
