1 To 4 Cores FRP Strength Member G657A LSZH GJYXCH Drop Cable

Ask Lasest Price
Brand Name :	DAWNERGY
Model Number :	GJYXCH
Certification :	CE
Price :	50USD
Payment Terms :	T/T, L/C, D/A, D/P
Supply Ability :	100,000KM PER DAY
Delivery Time :	10-20 work days

Add to Cart

Product Details
Company Profile

1 To 4 Cores FRP Strength Member G657A LSZH GJYXCH Drop Cable

GJYXCH Drop Cable 1 TO 4CORES FRP OR STEEL STRENGTH MEMBER G657A LSZH

GJYXCH Drop Cable

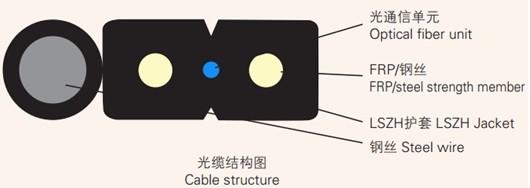

Cable Structure

Fiber Parameters

No.	Items		Unit	Specification
No.	Items		Unit	BLI A/B
1	Mode field diameter at 1310nm		μm	8.6~9.5±0.4
2	Cladding Diameter		μm	125±0.7
3	Cladding Non-Circularity		%	≤1.0
4	Core Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.4
9	Attenuation(max.)	1550nm	dB/km	≤0.3

Cable Parameters

Items		Specifications
Fiber Count		1
Colored Coating Fiber	Dimension	245±5μm
Colored Coating Fiber	Color	Blue
Strength Member	Dimension	0.40mm
Strength Member	Material	Phosphating steel wire
Self-Supporting Member	Dimension	1.0mm
Self-Supporting Member	Material	Phosphating steel wire
Jacket	Dimension	5.0±0.1mm×2.0±0.1mm
	Material	LSZH
	Color	Black

Tensile properties and Environmental conditions

Items	Unite	Specifications
Tension(Long Term)	N	300
Tension(Short Term)	N	600
Crush(Long Term)	N/100mm	1000
Crush(Short Term)	N/100mm	2200
Min. Bend Radius(Dynamic)	mm	60
Min. Bend Radius(Static)	mm	30
Installation Temperature	℃	-20～+60
Operating Temperature	℃	-20～+60
