DA-FDB-16I-PA-1 Fiber Optic Distribution Box

Dawnergy’s DA-FDB-16I-PA-1 fiber optic distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features

• Total enclosed structure.
• Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage. distribution...etc all in one.
• Cable,pigtails are running through their own paths without disturbing each other, easy maintenance.
• Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
• Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Applications

• FTTH Solutions

Specifications

Environmental requirement

• Working temperature:-40℃～+85℃
• Relative humidity:≤85%(+30℃)
• Atmospheric pressure:70KPa～106Kpa

Thunder-proof technical datasheet

• The insulation resistance between the grounding device and the metal parts of the box is no less than 2 MΩ/500V(DC)；IR≥2 MΩ/500V
• The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no flashover；U≥3000V

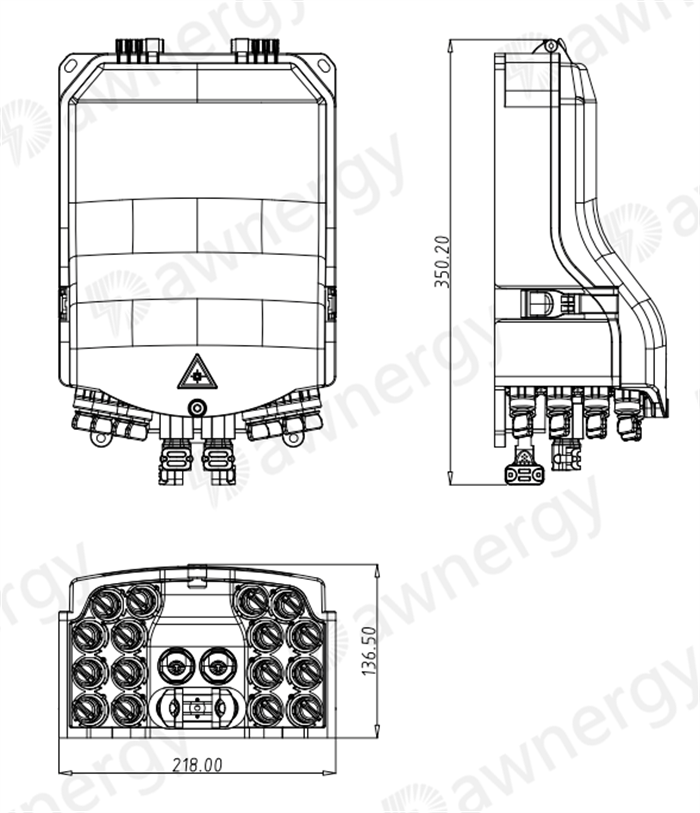

Diamension (mm)

Product Installation

Wall-mounted installation,Pole-mounted installation

Option 1: Pre-connector Protection Tube

3x2mm drop cable pre-connect the fast connector with protection tube

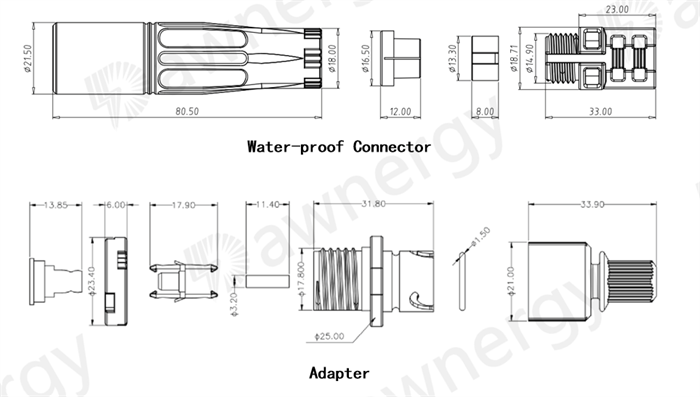

Option 2: Huawei Type Mini SC Fiber Connector Installation

Rotate the arrow part of fiber connector counterclockwise and take out the dust cap.

The arrow part of fiber connector is above, insert fiber connector into the socket and then rotate the arrow part clockwise.

Suitable for Huawei Type Mini SC Water Proof Adapter

Ordering Information

DA-FDB-16I-PA-1-MSC

Gray; PC+ABS; With the adaptor panel for max. 16 pieces of Huawei Mini SC water-proof adapters, 1 mid-span port (2cable inlet holes) and 2pcs single cable ports for Max 15mm input cable; Dimensions (mm): 320*218*133; Wall mounting accessories included(pole mounted kits is option)

DA-FDB-16I-PA-1-WPT

Gray; PC+ABS; With the adaptor panel for max. 16pcs of water-proof pre-connector protection tube, 1 mid-span port (2cable inlet holes) and 2pcs single cable ports for Max 15mm input cable; Dimensions (mm): 320*218*133; Wall mounting accessories included(pole mounted kits is option)
