Sliding Type 1U 144 Core High Density Patch Panel

Ask Lasest Price
Brand Name :	Dawnergy
Model Number :	Sliding Type
Certification :	CE/ANATEL/ROSH
Price :	700 USD
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	1000pcs per day
Delivery Time :	10-20 work days

Add to Cart

Product Details
Company Profile

Sliding Type 1U 144 Core High Density Patch Panel

Sliding Type High Density Patch Panel& Cassette

Dawnergy’s 19-inch compact type MPO patch panels and cassettes are designed to enable for installing and commissioning fiber optic network in short interval of time. These types of MPO and Cassettes are perfect solution for fiber optic installation and management.

Features

Easy to install and operate
19-inch standard structure
High density, 1U, up to 144C
Lightweight ABS material for MPO module
High quality metal sheet technology and fogging coating
High quality fiber management and structural accessories

Applications

Data Centre
Machine Room Cabling Management

1U Rack Specifications

Parameters	Specification
Model	DA-MPO-144C-1U-RA-M
Max. No. of Modules	12
Max. No. of Cores	144
Material	Cold rolled steel
Dimensions (mm)	483 (L) x 455 (W) x 44 (H)
Standard Accessories	Cable tie, Magic stick strip, Winding pipe

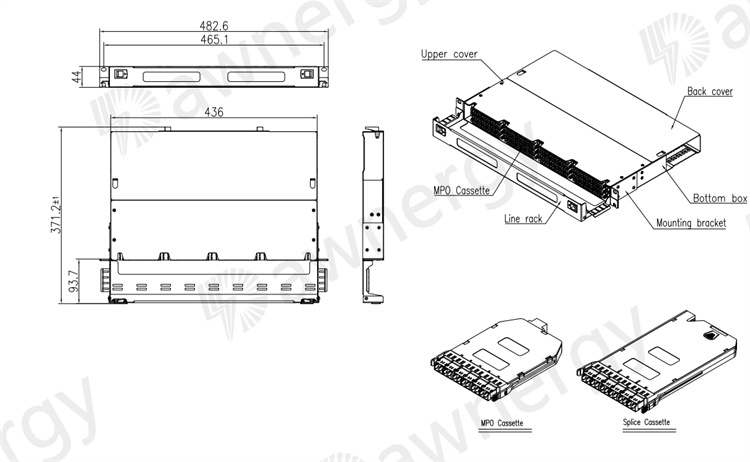

Rack Construction

Sliding Type 1U 144 Core High Density Patch Panel

MPO Cassette Specifications

Parameters	Specification
Model	DA-MPOM-6DLC-1-ABS-C-M
Color	Black
Max. No. of Cores	12
Material	ABS
Dimensions (mm)	124.5 (L) x 95 (W) x 12 (H)

Rack Construction

Sliding Type 1U 144 Core High Density Patch Panel

MPO Cassette Specifications

Parameters	Specification
Model	DA-MPOM-6DLC-1-ABS-C-F
Color	Black
Max. No. of Cores	12
Material	ABS
Dimensions (mm)	124.5 (L) x 95 (W) x 12 (H)

MPO Cassette and Splice Cassette Construction

Sliding Type 1U 144 Core High Density Patch Panel

MPO-LC Patchcord and MPO Adapter Pre-installed in MPO Cassette

MPO Adapter MPO-LC Patch Cord

Specifications

Parameters	Specification
Fiber Type	SM	MM
Insertion Loss (dB)	≤ 0.7	≤ 0.7
	(≤ 0.35 low insertion loss is optional)
Return Loss (dB)	≥ 50 (UPC) ≥ 60 (APC)	≥ 20
Durability (dB)	≤ 0.2, 500 times
Operating Temp (°C)	-20 ~ +75
Storage Temp (°C)	-20 ~ +75

Ordering Information

Model	Name	Description
DA-MPO-144C-1U-RA-M	MPO Patch Panel	Compact type; 19-inch rack, 1U chassis, Black cold rolled steel; Max 144 cores, suitable for 12 pieces of MPO cassettes (MPO cassettes NOT included)
DA-MPOM-6DLC-1-ABS-C-M	MPO Cassette	Compact type; ABS box; 1 piece of "12-core MPO male connector (including PIN)-LC" patch cord included, SM or MM fiber; 6 pieces of duplex LC adapters and 1 piece of MPO adapters included; Suitable for DA-MPO-144C-1U-RA-M patch panel

Product Tags:

Sliding Type High Density Patch Panel

High Density Splice Cassette

1U 144 Core MPO Cassette
