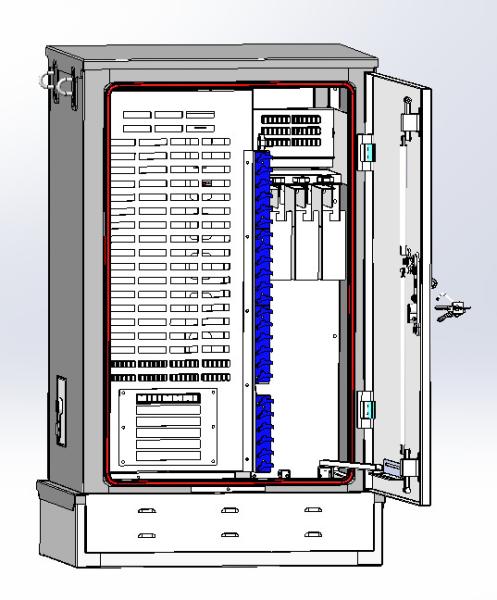

432 Core Street Pre-Assigned Fiber Distribution Cabinet

Dawnergy’s Street Pre-Assigned FDH Cabinet provides an interconnect environment from the feeder network through the passive optical splitter to the distribution network.Designed for rapid PON Network deployments, these cabinets provide a single distribution point, making it the ideal solution for deploying FTTH (fiber-to-the-home) where high potential take rates are expected. Pre-Assigned High Density 1 x 32 Splitters are loaded into the cabinet with a pre-terminated fiber tail, making installation and deployment very cost and time effective.

Features and Benefits

Unique advantages

Short installation time.

Fast connection.

Cables length can be customized before orders.

Investment
• Feeder and Distribution Fiber are pre-terminated into cabinet - No additional splicing required
• High Density Splitters are loaded and pre-assigned into cabinet
• Deployment time is minimized, allowing revenue generating circuits to be turned up immediately

Integrity
• Terminations designed, tested and certified to Telcordia GR-326
• Guarantee: 0.3 dB insertion loss or less, exceeding industry standards
• Fiber cable certified to Telcordia GR-20 and GR-409
• Constructed with Galvanized sheet 2.0mm
• Powder coated for additional protection
• 300 series stainless steel fasteners used on all cabinets

Protection
• Rugged cable clamps protect the OSP cable breakouts from twisting
• Patch only buffer tubes are fully protected with ruggedized, bend-limiting tubing
• High Density Splitters are built with ruggedized jacketing and bend-insensitive 900 um fiber for all input and output pigtails
Access
• Side access door
• Bottom exit/entrance for fiber cables

FDH Cabinet Specifications

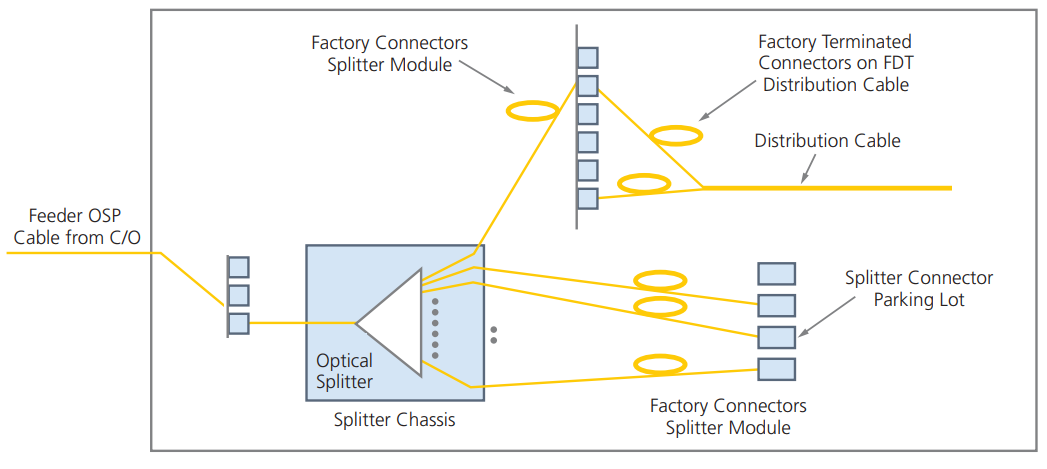

Connection Diagram Inside The FDH

High Density Splitter Modules

The compact yet robust splitters are available in multiple configurations (1x32). Each splitter module features small form connectorized inputs and outputs.

Standard-Performance Devices

Pre-terminated Feeder and Distribution Fiber Cable (24~432fibers)

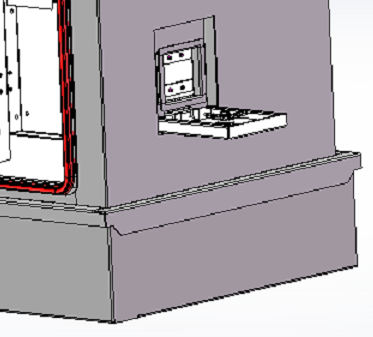

Grounding System and Side Access Door

Dimensions (mm)

Ordering Information
