DA-FOSC-DM48-P-105M-4 48 Core Dome Type Fiber Optic Splice Closure

Dawnergy's Dome type fiber optic splice closure is a multifunctional fiber splice equipment which is designed for connection, branching and connection. This FOSC has 4 cable ports. It is suitable for pole mounting, pipe-lined and direct buried. We are always in the purse of doing research and developing the telecommunication connection equipment. Our FOSC is your reliable choice to guarantee the quality of information transform.

Features

• Advanced internal design with enough space for fiber splicing and storage
• Long lasting body with PP plastic material
• Cable ports with mechanical sealing
• Portable, impact resistant, corrosion resistant and lightning resistant
• Cable sealing plug for 5mm drop cable

Applications

• FTTH access networks
• Telecommunication networks
• CATV networks
• Local Area Networks

Specifications

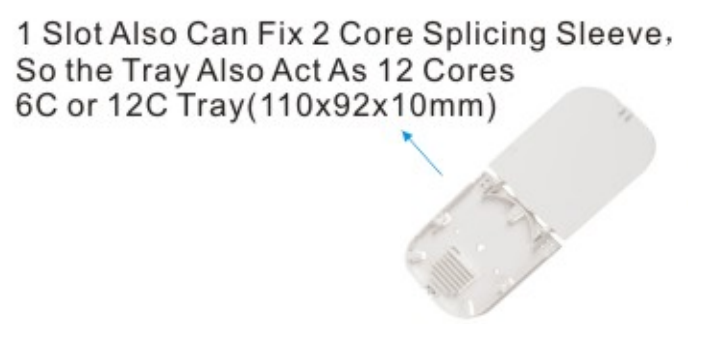

Splice Tray

5mm drop cable sealing plug

each sealing plugs suitable for 4pcs 5mm drop cable

Standard Package

1.Main body:1 set

2.Splice tray: configuring according to the quantity of cores

3.Splice package: configuring according to the quantity of cores

4. Pole mounted kits:1 set

5. Air Valve:1pc

6. 4holes 5mm drop cable sealing plug: 3pcs

Ordering Information

Example:

DA-FOSC-DM48-P-105M-12C-4

Dome type, Mechanical sealing; 12fibers, 1 tray of 12 fibers/tray (6slots, each slot can fix 2pcs splicing sleeves) included; 4 cable ports; Max capacity: 48 fibers; material: PP, dimensions (mm): 120 (D) ×300 (H); With accessories for pole mounting, air valve and 3pcs 5mm drop cable sealing plugs

DA-FOSC-DM48-P-105M-24C-4

Dome type, Mechanical sealing; 24fibers, 2 trays of 12 fibers/tray (6slots, each slot can fix 2pcs splicing sleeves) included; 4 cable ports; Max capacity: 48 fibers; material: PP+GF, dimensions (mm): 120 (D) ×300 (H); With accessories for pole mounting, air valve and 3pcs 5mm drop cable sealing plugs

DA-FOSC-DM48-P-105M-48C-4

Dome type, Mechanical sealing; 48fibers, 4 trays of 12 fibers/tray (6slots, each slot can fix 2pcs splicing sleeves) included; 4 cable ports; Max capacity: 48 fibers; material: PP+GF, dimensions (mm): 120 (D) ×300 (H); With accessories for pole mounting, air valve and 3pcs 5mm drop cable sealing plugs

Ps: The actual fiber core number shall be subject to the contract
