48 Core Fiber Optic Distribution Box

Ask Lasest Price
Brand Name :	Dawnergy
Model Number :	DA-FDB-48B-PA-10
Certification :	CE ROHS ANATEL
Price :	15USD
Payment Terms :	D/P, T/T, L/C, D/A
Supply Ability :	5000K per day
Delivery Time :	7-14 days

Add to Cart

Product Details
Company Profile

48 Core Fiber Optic Distribution Box

DA-FDB-48B-PA-10 Fiber Optic Distribution Box

Dawnergy’s fiber optic distribution boxes are widely used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting and distribution can be done in these boxes. These series of boxes provide solid protection and management for the FTTx networks.

Features

1. Total enclosed structure.

2. Material: PC+ABS,wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4. Feeder Cable, distribution cable, pigtails are running

through individual paths without disturbing each other, cassette SC adapter panel,

mini type PLC splitter installation, neat cabling, easy for maintenance.

5.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way,

easy for maintenance and installation.

6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Applications

FTTH access networks
Telecommunication networks
CATV networks
Local Area Networks

Specifications

Box Material

Size (mm)

Max Capacity

Cable Port

Splice

Adapter Panel

PLC splitter

PC+ABS

385*325*117

1pc 12fibers/tray

Max. 48pcs SC adapters

Max. 1pc 1x32 mini type PLC splitter

4 inlet ports for max. OD12.6mm cable

2 outlet ports for max. 48pcs 2x3mm drop cable

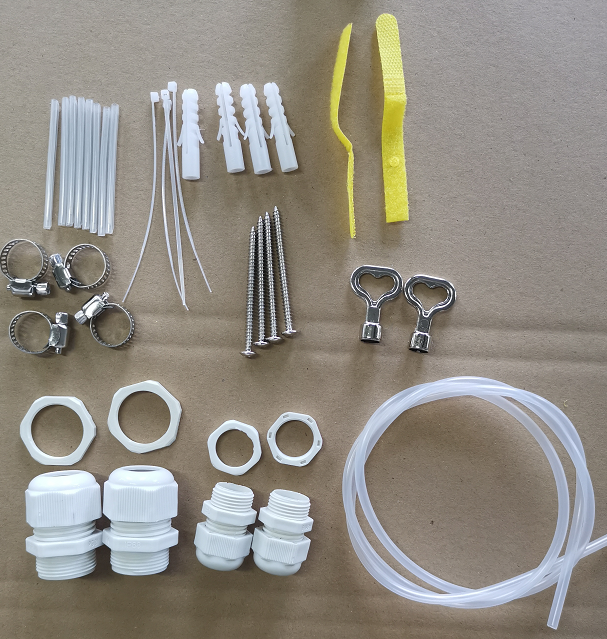

Standard Package

Ordering Information

Part Number	Name	Description
DA-FDB-48B-PA-10	Fiber Optic Distribution Box	Gray; Material: PC+ABS; Adapter panel support max. 48pcs SC adapters, suitable for max. 1pc 1x32 mini type PLC splitters; 4 inlet ports and 2 outlet ports
