DA-GJYX(F)CH FTTH Drop Fiber Optic Cable

Ask Lasest Price
Brand Name :	DAWNERGY
Model Number :	SM G657A1
Certification :	CE/ VDE/ TELCORDIA
Price :	50USD
Payment Terms :	T/T, L/C, D/A, D/P
Supply Ability :	100,000KM PER DAY
Delivery Time :	10-20 work days

Add to Cart

Product Details
Company Profile

DA-GJYX(F)CH FTTH Drop Fiber Optic Cable

DA-GJYX(F)CH FTTH Drop Cable

Dawnergy’s FTTH drop cable construction is that the optical fiber unit is positioned in the center; Two parallel strength members are placed at the two sides; A steel wire as the additional strength member is also applied; The cable is completed with a fire resisted LSZH sheath.

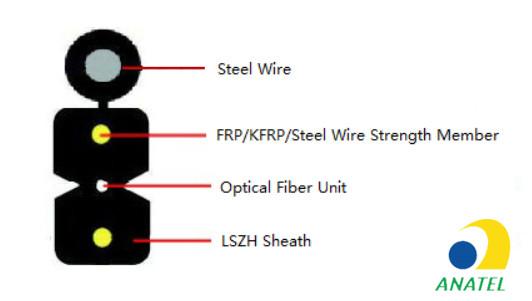

Cable Construction

Features

Good crush resistance ensured by parallel strength member
Good tensile strength ensured by single steel wire
Low smoke, zero halogen and fire resisted sheath
Simple structure, light weight and high practicability

Optical Fiber Characteristics

Parameters		Specification
		Before Cable	After Cable
Fiber Type		SM G657A1
Mode Field Diameter (um)		8.6~9.2±0.4 (@1310nm)
Cladding Diameter (um)		125±0.7
Coating Diameter (um)		245±10
Core Concentricity Error (um)		≤0.5
Cladding Non-circularity (%)		≤1.0
Zero Dispersion Wavelength (nm)		1300~1324
Zero Dispersion Slope		≤0.092 ps/(nm²·km)
Polarization Mode Dispersion Coefficient (Max Individual Fiber)		≤0.2
Cable Cut-off Wavelength (nm)		≤1260
Fiber Attenuation (dB/km)	@ 1310nm	≤0.35	≤0.4
	@ 1550nm	≤0.21	≤0.3
Macro bending Loss (dB)	10mm radius, 1 turn	≤0.75 @1550nm
	10mm radius, 1 turn	≤1.5 @1625nm
	15mm radius, 10 turns	≤0.25 @1550nm
	15mm radius, 10 turns	≤1.0 @1625nm

Cable Specifications

Parameters		Specifications
Fiber Core		1	2	4
Cable Dimension (mm)		(2.0±0.1) × (5.0±0.1)
Cable Weight (kg/km)		20	20.5	22
Tensile Strength (N)	Short Term	600
	Long Term	300
Crush Resistance (N/100mm)	Short Term	2200
	Long Term	1000
Bending Radius (mm)	Dynamic	60
	Static	30
Cable Attenuation (After Cable) (dB/km)	SM Fiber @1310nm	≤0.4
	SM Fiber @1550nm	≤0.3
Operating Temperature (°C)		-20 ~ +60
Storage Temperature (°C)		-20 ~ +60

Ordering Information

DA-GJYXFCH-1-SMA1-FL-B

FTTH drop cable (GJYXFCH), bow-type, FRP strength members, with a steel wire self-supporting, fire resisted LSZH jacket (black) comply with IEC60332-1-2; 1 fiber, G657A1

DA-GJYXCH-1-SMA1-FL-B

FTTH drop cable (GJYXFCH), bow-type, steel wire strength members, with a steel wire self-supporting, fire resisted LSZH jacket (black) comply with IEC60332-1-2; 1 fiber, G657A1
