    DA-ODF 1008F Fiber Optic Distribution Frame

    DA-ODF 1008F Fiber Optic Distribution Frame

    Dawnergy’s Optic distribution frame can be used in the termination and distribution of partial trunk optical cable in optical cable communication system, easy to realize connection distribution and adjustment.

    DA-ODF 1008F Fiber Optic Distribution Frame DA-ODF 1008F Fiber Optic Distribution Frame

    Features

    • Integral assembling of Frame after welding, aesthetic as well as practical.
    • Cable route area and fiber storage area separated, fiber channel fabric zoning mechanism to prevent fiber from crossing
    • Angular SC/APC or SC/PC adaptor panel
    • Reliable fiber optic protection, flexible frame fixing and grounding devices
    • Proper patching management

    Applications

    • FTTH access networks
    • Telecommunication networks

    ODF Specifications

    ParametersSpecification
    ColorBlack or Telecom grey
    Maximum Number of Cores1008
    Type of ODF Unit4U, 144 cores (6 pieces of 24-core integrated tray)
    Max. Qty of ODF Unit7
    Integrated Splice Tray (core/tray)24 cores/tray
    Adapter TypeAngular SC/APC or SC/PC
    Key and LockYes
    MaterialODF2.0 mm Cold-rolled steel with 80um paint
    ODF unit1.2mm Cold-rolled steel
    Dimensions (mm) (W×H×D)840 × 2000 × 300

    Environmental Requirements:

    Operating temperature: +5℃ ~ +40℃

    Relative humidity: ≤85% (+30℃)

    Atmospheric pressure: 70kPa ~ 106kPa


    Lightning protection technical indicators:

    The high voltage protection device of the cabinet is insulated from the frame, and the insulation resistance is not less than 1000MΩ/500V (direct current); IR 1000 m Ω / 500 v or higher

    The resistance voltage between the high voltage protection device of the cabinet and the rack is not less than 3000V (direct current) /min, no breakdown, no arc;

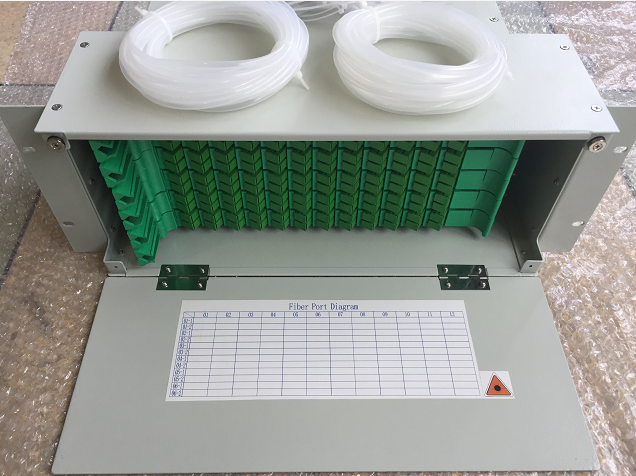

    ODF Unit

    DA-ODF 1008F Fiber Optic Distribution FrameDA-ODF 1008F Fiber Optic Distribution Frame

    Sample picture


    ODF Unit Specifications

    ParametersSpecification
    ColorBlack or Telecom grey
    Max. No. of Cores12/24/48/96/144
    Adapter TypeAngular SC/APC or SC/PC (transparent dust cap)
    Box Material1.2mm Cold-rolled steel
    Splicing Tray24cores tray
    Max. Dimensions (mm) (W x H x D)482x174.6x250 (144F)

    Standard Package

    No.NameUnitQuantity
    1Frameset1
    2Protective Tubepiece1
    3Protective Sleevespieces1008

    Ordering Information


    ModelNameDescription
    DA-ODF-1008F-xFiber Optic Distribution FrameMax. 1008 cores (with 7sets 4U, DA-ODFU-A-144-x ODF unit); ODF Rack Material: Cold-rolled steel; Dimensions(mm): 840(W) × 2000(H) × 300(D)
    DA-ODFU-A-144-xOptic Distribution Frame Unit19-inch rack, 4U, Max. 144 cores integrated splice tray, SC/APC or SC/PC adapter panel; Full loaded angular SC/APC or SC/PC adapters (transparent cover) and pigtails
