    2-24F Mini Air Blown Fiber Optic Cable

    Ask Lasest Price
    Brand Name : DAWNERGY
    Model Number : 2~24f
    Certification : CE/TELCORDIA
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 10,000KM PER DAY
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    2-24F Mini Air Blown Fiber Optic Cable

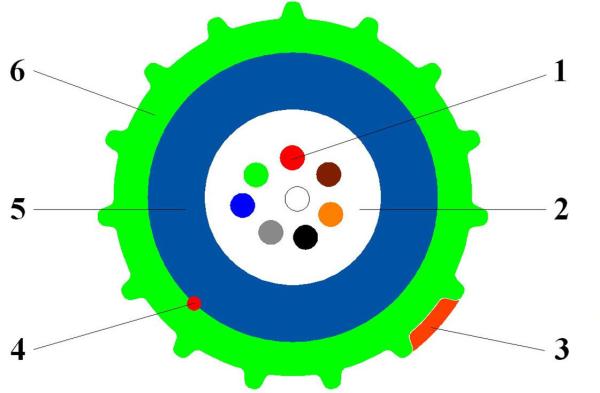

    Mini air blown cable 2~24f

    Features and Benefits

    • Special complex material loose tube, reduce the shrink of tube in cold temperature.
    • Accurate fiber length balance, stable mechanical and temperature performance.
    • Particular technique control, prevent sheath form crinkling during installation.
    • Structure Innovation in sheath, enhancing the blowing performance.

    Technical Index


    Cable TypeGCYFXTYXB1.3(MTE + Cable diameter)
    MTE2.0MTE2.3MTE2.5MTE2.8
    Fiber Count2~46~122~1214~24
    Thickness of HDPE sheathNominal value:0.20mm, Average value:0.15mm
    Nominal Overall Diameter2.0±0.1mm2.3±0.1mm2.5±0.1mm2.8±0.1mm
    Weight4.0 kg/km5.0 kg/km6.0 kg/km7.0kg/km
    Cable Fibre Attenuation (single mode)0.35dB/km max @1310nm 0.22dB/km max @1550nm
    Max. Tensile Strength40N50N60N60N
    Max. Crushing force600N/100mm
    Min. Bending radius -Static / Dynamic10 / 20 outer Φ
    TemperatureStorage -30~+50℃;Installation-10~+40℃;Operation-20~+50℃
    Cable service life (estimate value)25 years

    Testing Index


    Blowing performance

    Blowing ToolTypical blowing length

    PLUMETTAZ:PR-140, MiniJet-400 etc.

    Air pressure : 13bar

    Fibres Count

    Duct type

    3.5/5.0mm

    Duct type

    5.5/7.0mm

    2~12 fibres800m1500m
    14~24 fibres/1500m

    Mechanic performance

    ItemTesting MethodTesting ResultsSpecified Value
    Tension performanceIEC 60794-1-21-E1Optical fibre strainAdditional attenuation

    Max. Tensile Strength =

    Short term Allowable tension

    ≈2×(Long term Allowable

    Tension)

    Short term:≤0.3%

    Long term:≤0.1%

    Short term:2-24F Mini Air Blown Fiber Optic Cable<0.1 dB,

    2-24F Mini Air Blown Fiber Optic Cablereversible;

    Long term:2-24F Mini Air Blown Fiber Optic Cable≤0.03 dB

    CrushIEC 60794-1-21-E3

    Short term:2-24F Mini Air Blown Fiber Optic Cable<0.10 dB, 2-24F Mini Air Blown Fiber Optic Cablereversible;

    Long term:2-24F Mini Air Blown Fiber Optic Cable≤0.03 dB;

    The outer sheath has no visible crack.

    Short term

    crushing force =600 N

    Long term

    crushing force =300 N

    Repeated bendingIEC 60794-1-21-E6

    After test, 2-24F Mini Air Blown Fiber Optic Cable≤0.03 dB;

    The outer sheath has no visible crack.

    R=20 outer Φ
    Bending load =15N
    Bending times =25
    TorsionIEC 60794-1-21-E7

    After test, 2-24F Mini Air Blown Fiber Optic Cable≤0.03 dB;

    The outer sheath has no visible crack.

    Torsion angle=±180º
    Torsion load =15N
    Torsion times =5
    Cable bendIEC 60794-1-21-E11A

    After test, The optical fibre can’t be broken;

    The outer sheath has no visible crack.

    R=20 outer Φ

    10Turns

    Cycles times =5

    All optical testing proceeded at 1550 nm

    Environment performance

    ItemTesting MethodTesting Results
    Temperature cyclingIEC 60794-1-22-F1Allowable additional attenuation (1550nm)
    G.652BG.652DG.657
    2-24F Mini Air Blown Fiber Optic Cable≤0.10 dB/km, 2-24F Mini Air Blown Fiber Optic Cablereversible;
    Water penetrationIEC 60794-1-22-F5B

    Water column: 1m, 3m cable, Period:24 hours

    No water leak through the open end of cable

    Filling compound flowIEC 60794-1-22-F16

    70℃,Period:24 hours

    No compound flow from the cable


    Other Index


    Sheath color: Green

    Sheath Marking

    The outer sheath is marked at intervals of 1 meter as follows:


    ABC MINI number and type of fibre MTE Cable diameter [MM-YYYY] =length marking in meter=


    Example: ABC MINI 24 G652D MTE2.8 [04- 2014] =1888m=


    Delivery Lengths

    Standard delivery lengths are 2km, 4km, 6km with a tolerance of -1%~+3%.

    Fibre Count

    Drum length

    (m)

    Drum Size

    Φ×W

    (mm)

    Packing Size

    L×W×H

    (mm)

    Weight

    (Gross)

    (kg)

    2~12 Fibres

    φ2.0-2.5

    2000Φ450×370480×370×64527
    4000Φ500×370530×370×69539
    6000Φ550×370580×370×74551

    14~24 Fibres

    φ2.8

    2000Φ500×370530×370×69531
    4000Φ550×370580×370×74546
    • Packing

    Wooden or plywood drums with protection.
