    DA-GYXTC8Y-12-SM-PE-B-2KM FTTH Optical Fiber Cable

    Ask Lasest Price
    Brand Name : DAWNERGY
    Model Number : SM G652D
    Certification : CE/ VDE/ TELCORDIA
    Price : 50USD
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 100,000KM PER DAY
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    DA-GYXTC8Y-12-SM-PE-B-2KM FTTH Optical Fiber Cable

    DA-GYXTC8Y-12-SM-PE-B-2KM

    FTTH Optical Fiber Cable

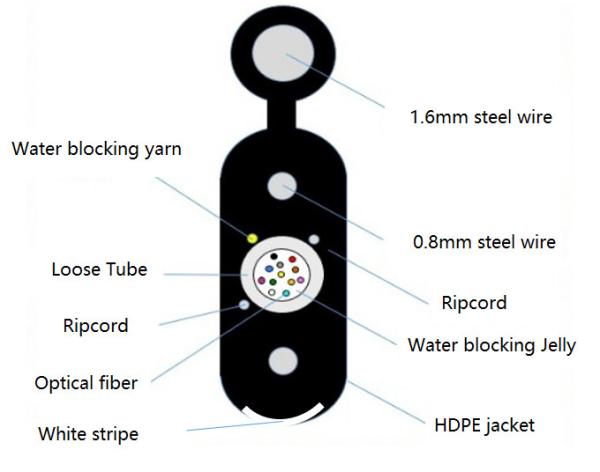

    Cable Structure

    DA-GYXTC8Y-12-SM-PE-B-2KM FTTH Optical Fiber Cable

    Optical Fiber Characteristics

    ItemDescription
    Fiber TypeSM G652D
    Mode Field Diameter (um)9.2±0.4
    Cladding Diameter (um)125±1
    Coating Diameter (um)250±15
    Core Concentricity Error (um)≤0.6
    Cladding Non-circularity (%)≤1.0
    Zero Dispersion Wavelength (nm)1300~1324
    Zero Dispersion Slope≤0.092ps/(nm2·km)
    Chromatic Dispersion @1285~1325nm≤ 3.5 ps/(nm.km)
    Chromatic Dispersion @1550nm≤18.0 ps/(nm.km)
    Radius of Curvature (mm)30

    Polarization Mode Dispersion Coefficient

    (Max Individual Fiber)

    ≤0.2
    Cable Cut-off Wavelength (nm)≤1260
    Proof Test (kpsi)≥100
    Macro bending Loss (dB)60mm radius, 100turn≤0.1 @1625nm

    Cable Specifications

    ItemDescription
    Cable Diameter(4.0±0.3) ×(10.0±0.3)mm
    Approx. Cable Diameter(4.0×6.0)±0.3mm
    Approx. Steel Wire Sheath Outer Diameter3.2±0.3mm
    Central Strength MemberMaterialPhosphating steel wire
    Outer Diameter0.8±0.02mm
    Steel WireMaterialPhosphating steel wire
    Diameter1.6±0.03mm
    Optical FiberTypeG .652D
    Numbers12
    Loose TubeOuter Diameter2.2±0.1mm
    MaterialPBT
    Water BlockingTube Filling Compound
    ColorBlue
    Water BlockingMaterial1500D Water blocking yarn
    Installation OrientationSpiral Winding
    RipcordMaterial1500D
    ColorWhite
    Sheath of CableMaterialBLACK HDPE With white stripe
    Fiber Attenuation Coefficient in CabledB/km(1310nm)≤0.36dB/km
    dB/km(1550nm)≤0.22dB/km

    Mechanical and Physical Characteristics

    ItemTest MethodTest Criteria
    Tensile LoadingShortTerm:2000N; LongTerm:1000N; Mandrel dia.: 400㎜; Length: ≥ 90m; Maintained time: 10 mins.Attenuation change: ≤ 0.1 dB @1550 nm
    Compressive Loading

    Load:500N; PlateSize:100mm*100mm;

    Maintained time: 10 mins.

    Attenuation change: ≤ 0.1 dB @1550 nm
    Impact ResistanceRadius of impacted surface: 25 mm; Impact Force: 5 N.m; No. of impact: 3Attenuation change: ≤ 0.1 dB @1550 nm
    Cyclic FlexingMandrel dia.: 50㎜; Bending angle: ±90°; No. of cycle: 25Attenuation change: ≤ 0.1 dB @1550 nm
    Cable TwistLength: 1m; Load: 10 N; Twist angle: ±180°; No. of cycle: 10Attenuation change: ≤ 0.1 dB @1550 nm

    Temperature

    Operating: -20℃~+70℃

    Store/Transport: -20℃~+70℃

    Installation: -20℃~+60℃


    Packaging

    • Standard length of cable shall be 2,000m.
    • Each length of the cable shall be wound on a reel.
    • Both ends of the cable shall be sealed with suitable plastic caps.
    • The cable ends shall be securely fastened to the reel.
