96(144) Core SMC Outdoor Distribution Cabinet For Networks

Ask Lasest Price
Brand Name :	Dawnergy
Model Number :	DA-FDH-96&144SMC
Certification :	CE
Price :	498 USD
Payment Terms :	T/T
Supply Ability :	100 PER DAY

Add to Cart

Product Details
Company Profile

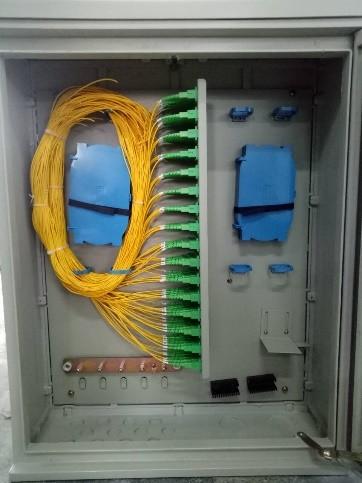

96(144) Core SMC Outdoor Distribution Cabinet For Networks

Dawnergy’s fiber optic cross-connect cabinets are mainly used for termination and cross-connections between cabling elements. This series of OCC's is with excellent insulation, high water-proof and dust-proof performance. These are widely applied in fiber optic networks, PON (GPON, EPON, BPON, APON) OSP networks and WDM/CWDM/DWDM networks.

Features

Cabinets with SMC material: heat insulation, waterproof and good corrosion resistance
High performance rubber seals: effective rain and dust proof for outdoor environment
Modules individually removable: easy to construct and maintain
Reliable cable fixing and grounding protection devices
Safe and reliable fiber optic storage and protection

Applications

FTTH access networks
Telecommunication networks
CATV networks
Local Area Networks

Specifications

Parameters	Specification
Model	DA-OCC-SMC96		DA-OCC-SMC144
Max. No. of Cores	96		144
Splitter Type	Box type
Max. No. of Splitters	2		6
Splice Tray Type	24 cores/tray		12 cores/tray (integrated splice tray)
Max. No. of Splice Tray	8		12
Cabinet Material	SMC
Adapter Panel	FC square, SC, DLC (SC type)
Insulation Resistance (MΩ)	1000 @500V (DC)
Withstanding Voltage (V/min)	3000 (DC), no breakdown, no flashover
Installation Type	Pole, Ground
Protection Rating	IP65
Operating Temperature (°C)	-40~ +60
Dimensions (mm)	710 (H) x 550 (W) x 180 (D)	1035 (H) x 555 (W) × 310(D)
Weight (kg)	38	79

Ordering Information

Model	Name	Description
DA-OCC-96SMC-1	Fiber Optic Cross-connect Cabinet	Adaptor panel for max. 96 pieces of adapters, SC panel; 8 pieces of splicing trays (24 cores/tray) and accessories for pole mounted application included; Pigtails, adapters and splitters NOT included; Material: SMC; Dimensions (mm): 710 (H) x 550 (W) x 180 (D)
DA-OCC-144SMC-1	Fiber Optic Cross-connect Cabinet	Adaptor panel for max. 144 pieces of adapters; Max. support 12pieces of splice and distribution integrated trays (12 cores/tray), and 6splitter slots; Tray, Pigtails, adapters and splitters NOT included; Material: SMC; With base; Dimensions (mm): 1035 (H) x 555 (W) × 310(D)
