DA-OC-5G Outdoor Cabinet

Dawnergy’s DA-OC-5G series are modular designed outdoor cabinets for wireless communication equipment. They are featured by flexible configuration, quick assembling and easy expansion.

Features

• The installation is based on 19 "standard structure design, with 26U installation space, with good installation versatility
• Sliding rail type installation, easy to maintain
• Protection class IP55, protect the internal equipment from the external bad environment interference
• Sandwich structure; The inner and outer layers are metal plates, and the middle layer is 10mm insulation layer, which can effectively prevent the temperature rise caused by solar radiation
• The cabinet adopts the structure of main body welding and partial assembly to ensure the protection
• The door lock adopts the special waterproof lock for the outdoor cabinet, and the three-point locking structure provides reliable safety protection for the cabinet
• The cabinet door adopts windproof structure
• The cabinet adopts industrial-grade ventilation equipment, with stable and reliable heat dissipation performance, long life, reasonable air duct design and good ventilation and heat dissipation effect
• The fan is installed on the top of the cabinet in the middle position, which can effectively reduce the temperature emitted by the main equipment, and improve the safety of the equipment
• The grounding system is safe and reliable
• The installation screw of the cabinet is placed inside the cabinet, which is reliable against theft
• The cable in and out from the bottom of the cabinet adopts waterproof joint to effectively realize waterproof and dustproof
• The cabinet is installed on the ground

Applications

• FTTH
• 4G/5G
• Wireless Communication

Cabinet Specifications

Outdoor Cabinet Standard Package

Embedded Power System

embedded power system is composed of a motor frame, a monitoring module and a rectifier module; The power system has DC power distribution function, power monitoring to provide support for external signal input, communication transfer function and AC-DC detection, contactor control and other functions, the whole machine performance is stable, practicability is strong, can be background software operating system.

Specifications

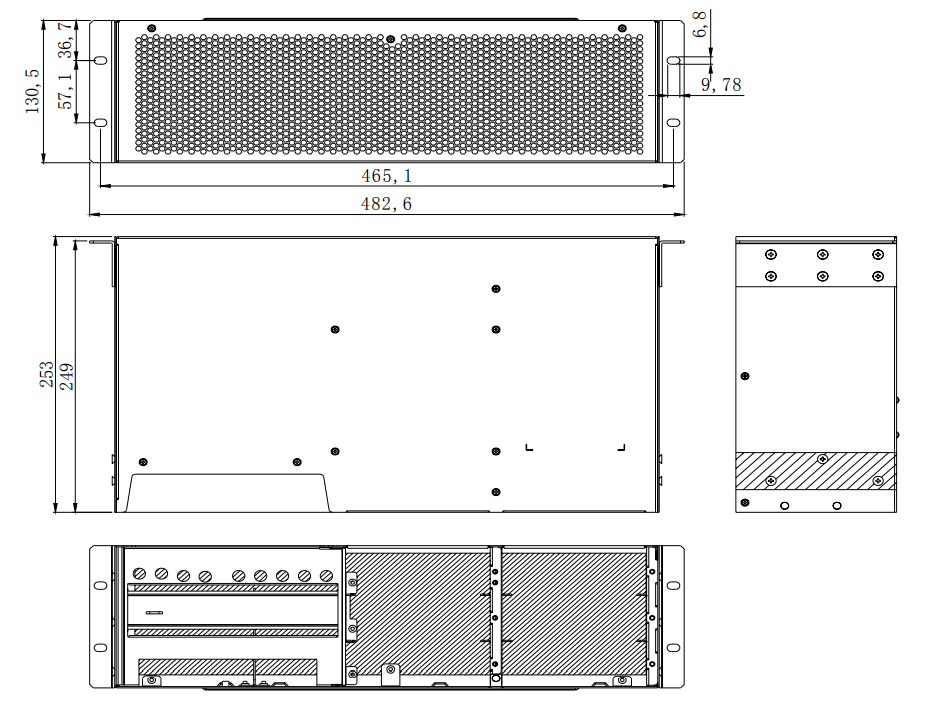

Dimension (mm)

GPR4830B1 Rectifier Module Specifications

Monitoring Module Function

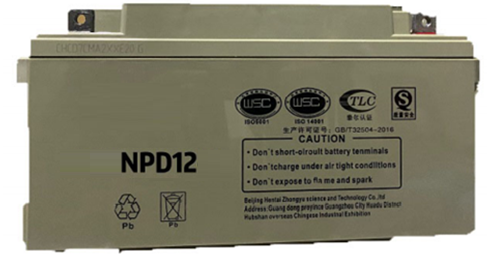

Battery

Features

• Capacity range: 33~250ah
• Voltage range:6v/12v
• Low self-discharge rate: 25℃,less than 2% per month
• Long design life: 25℃, 6v 15years; 12v, 10years
• High sealing reaction rate: more than 98%
• Scope of Applicable Environment: -15℃~50℃
• Operating temperature range:-20℃~50℃
• Recommended Operating Temperature:25℃

Specifications
