47U Network Cabinet

Product Features

• Applicable for all rack-mounted equipment conforming to ANSI/ EIA standard (customized products include)
• Solid modular alloy steel frame, maximum static load capacity up to 800 KG
• Widened cabinet structure design, equipping with vertical cable ducts to orderly lay a large volume of cables
• Movable equipment mounting pillars for different depth equipment
• Top and bottom cover plates both with cabling passageways for various cabling requirements

Technical Specification

• Material: Frame structure, back door: Cold rolled steel sheet (SPCC); Front door: Glass

See Standard Configuration Table for the details

• Load Capacity: Up to 800KG
• Optional Color: ANSI 70 Grey
• Surface Finish: Degreasing, Pickling, Phosphor zing, electrostatic powder spraying
• Standard Supply: See Standard Configuration Table
• Protection Category: IP20

U-marked Movable equipment mounting pillar Cabling passageways Screws and nuts

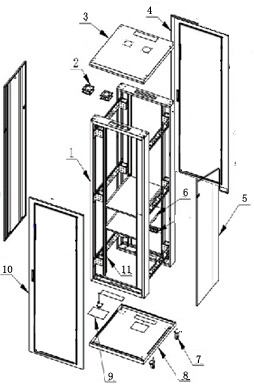

Standard Configuration Table

	No.	Part Name	Material	Qty.
	01	Cabinet Frame	SPCC 2.5mm Cold rolled steel sheet	1
	02	Cooling fan unit	ABS＆ Steel	optional
	03	Up cover plate	SPCC 1.7mm Cold rolled steel sheet	1
	04	Rear door	SPCC 1.7mm Cold rolled steel sheet	1
	05	Side plate	SPCC 1.7mm Cold rolled steel sheet	2
	06	Shelf plate	SPCC 1.7mm	optional
	07	2.5” wheel	ABS & SPCC	optional
	08	Down cover plate	SPCC 1.7mm Cold rolled steel sheet	1
	09	Cabling passageway cover plate	SPCC 1.7mm Cold rolled steel sheet	5
	10	Front door	Glass Single door with small plastic window	1
	11	Equipment mounting pillar	Cold rolled steel, 1.7mm thickness	4

Ordering Information

Accessories

Package

Assembly (wooden pallet)
