MPO MTP 12 24 LC Cassettes

Ask Lasest Price
Brand Name :	dawnergy
Model Number :	DA-MPO/MTP-12(24)LC-CM
Certification :	CE/ANATEL/ROSH
Price :	25USD
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	1000pcs per day
Delivery Time :	10-20 work days

Add to Cart

Product Details
Company Profile

MPO MTP 12 24 LC Cassettes

MPO/MTP 12 24 LC Cassettes

Dawnergy’s MPO/MTP Cassettes consist of pre-terminated LC or SC adapters for quick and easy deployment in high density applications and provide efficient utilization of rack space and design flexibility. The cassettes interconnect with high-density fiber cable assemblies for quick connection of remote or data center applications. These types of MPO/MTP cassettes and distribution box are perfect solution for fiber optic installation and management.
Features:

High-density modular design, up to 96 fibers in 1U or 288 fibers in 3U for efficient utilization.
Pre-terminated cassette for improved reliability and quick deployment.
High performance connectors to achieve a low loss optical budget.
Plug-N-play modules allow fast installation of multiple fiber links.

Parameters of Fiber Mode

Parameters	Specification
Fiber Count	12/24
Fiber Mode	SM/OM3/OM4
Front Connector	LC/SC
Rear Connector	MTP/MPO
Material	ABS+PC
Dimension (H x W x D)	33 x 98 x124

Fiber Optic Performance of Connector

Connector Type		MPO/MTP Connector		Standard SM MT Ferrule	Low Loss SM MT Ferrule		Standard MM MT Ferrule	Low Loss MM MT Ferrule
Insertion Loss		Typical	(dB)	0.50	0.20		0.50	0.20
		Maximum	(dB)	0.70	0.35		0.70	0.35
Return Loss			(dB)	≥60 for APC, ≥50 for UPC			≥20 for UPC
Male/Female				Male: With Pins, Female: Without Pins
Tensile Strength			(dB)	△IL≤0.30, △RL＜5(Max:50N)
Durability			(dB)	△IL≤0.30, △RL＜5(500 times)
Test Wavelength			(nm)	1310/1550			850/1300
Operating Temperature			(℃)	-40~80
Connector Type	LC/SC Connector			SM		MM
Insertion Loss			(dB)	≤0.30		≤0.30
Return Loss			(dB)	≥60 for APC, ≥50 for UPC		≥20 for UPC
Durability			(dB)	△IL≤0.30, △RL＜5(500 times)
Test Wavelength			(nm)	1310/1550		850/1300
Operating Temperature			(℃)	-40~80

Note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Polarity Illustration
Note: Cassettes A and Cassettes B are used as a pair in a two cassettes method A link.

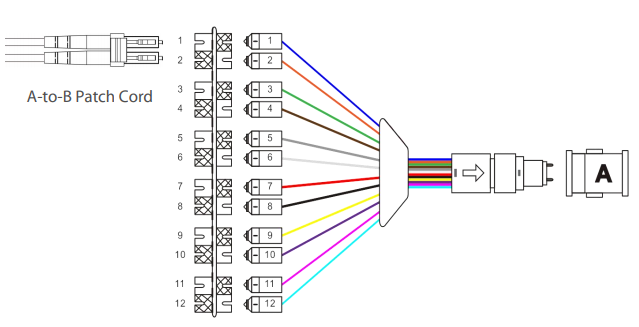

Cassettes A

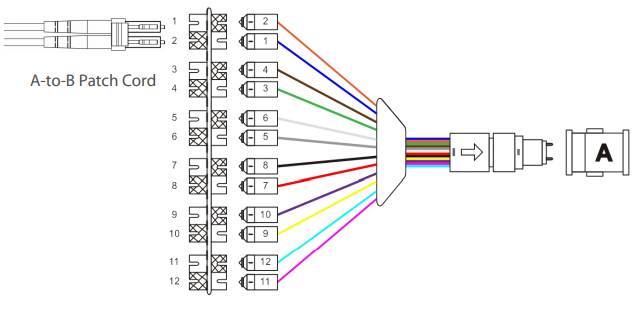

Cassettes B

Order Information

Model	Name	Description
DA-AMPOM(AMTPM) -12DLC-2-SMA1-ABS-C	MPO Cassette	ABS box; 2 pieces of "12-core MPO (MTP)/APC male connector (including PIN)-LC" patch cord included, SM G657A1; 12 pieces of duplex LC adapters and 2 pieces of MPO(MTP) adapters included; Suitable for DA-MPO(MTP)-4C-1U-RA or DA-MPO(MTP)-12C-3U-RA Distribution Box
DA-MPOM(MTPM)-12DLC-2-OM3-300-ABS-C	MPO Cassette	ABS box; 2 pieces of "12-core MPO (MTP)/UPC male connector (including PIN)-LC" patch cord included, OM3, transmission distance: 300m; 12 pieces of duplex LC adapters and 2 pieces of MPO (MTP) adapters included; Suitable for DA-MPO(MTP)-4C-1U-RA or DA-MPO(MTP)-12C-3U-RA Distribution Box
DA-AMPOM(AMTPM)-12SC-1-SMA1-ABS-C	MPO Cassette	ABS box; 1 piece of “12-core MPO (MTP)/APC male connector (including PIN)-SC” patch cord included, SM G657A1; 12 pieces of single SC adapters and 1 piece of MPO (MTP) adapter included; Suitable for DA-MPO(MTP)-4C-1U-RA or DA-MPO(MTP)-12C-3U-RA Distribution Box
DA-MPOM(MTPM)-12SC-1-OM3-300-ABS-C	MPO Cassette	ABS box; 1 piece of "12-core MPO (MTP)/UPC male connector (including PIN)-SC" patch cord included, OM3, transmission distance: 300m; 12 pieces of single SC adapters and 1 piece of MPO (MTP) adapter included; Suitable for DA-MPO(MTP)-4C-1U-RA or DA-MPO(MTP)-12C-3U-RA Distribution Box

Note : Maximum number of duplex LC or single SC adapters is 12pcs for each MPO Cassette.
