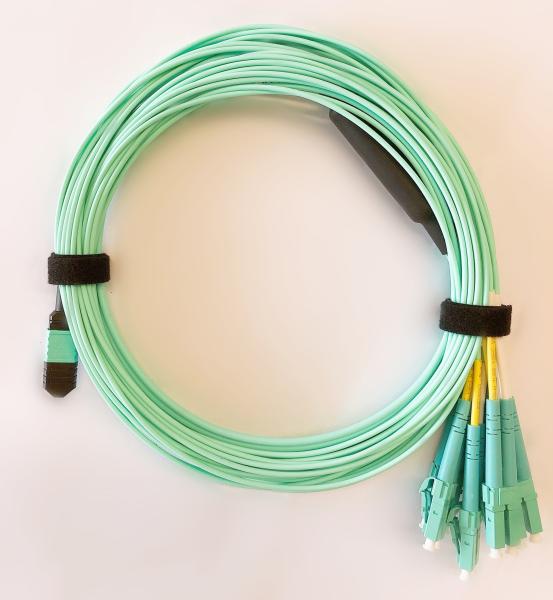

    Trunk Harness MPO OM3 LC Fan Out Fiber Optic Patch Cord

    Ask Lasest Price
    Brand Name : dawnergy
    Model Number : MPO12-LC-12-SM
    Certification : CE/ANATEL/ROSH
    Price : 25USD
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 1000pcs per day
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    Trunk Harness MPO OM3 LC Fan Out Fiber Optic Patch Cord

    MPO patch cord MPO LC FAN-OUT MPO trunk harness Fiber optic MPO Cable Assemblies


    Dawnergy MPO-LC fan-out is designed for rapid deployment of multi-port patch field connectivity in high-density storage area network (SAN) and data center LAN applications, ensuring efficient use of horizontal and vertical rack pathways through the use of small form cable

    Features:

    • Lower insertion loss and high-return loss
    • Better durability
    • Excellent dust-proof
    • Ruggedized round cable, oval cable and 0.9mm loose tube optional
    • 12 and 24 channels MPO available, duplex and uniboot LC connectors available
    • Factory terminated and tested for instant field connections and guaranteed quality and performance
    • Simple installation, flexible configuration, easy for management
    • Support 40G and 100G network applications
    • In full compliance with Telcordia GR-1435-CORE


    Applications:

    • Data centers
    • Telecom systems
    • Optical-electrical modules
    • Optical switch and routers
    • PC cards and patch panel
    ParametersSingle modeMulti mode
    9/125um62.5/125um, 50/125um
    12CH MPO24CH MPO12CH MPO
    MPO plusStandard MPOMPO plusStandard MPOMPO plus
    Insertion loss (max, dB)0.20.30.50.70.40.710.20.3
    Return loss (min, dB)606055556055503030
    DurabilityMPO plus ≤0.2dB after 200 mates/dematesMPO plus ≤0.2dB after 200 mates/demates
    Standard MPO ≤0.2dB after 50 mates/dematesStandard MPO ≤0.2dB after 50 mates/demates
    Male/femaleMale: with pinsMale: with pins
    Female: no pinsFemale: no pins
    Test wavelength (nm)1310/1550850
    Operating temperature-40 to +85°C-40 to +85°C

    Performance before and after 200 mate/demates
    Fiber channelλ12345678
    Insertion loss (before test)13100.180.160.210.080.050.080.120.1
    15500.080.120.090.160.070.030.140.06
    Insertion loss (after test)13100.10.230.20.180.230.120.10.23
    15500.120.190.110.020.150.060.170.21
    Variation13100.08-0.070.01-0.1-0.18-0.040.02-0.13
    1550-0.04-0.07-0.020.14-0.08-0.03-0.03-0.15
