    Mini Armored Cable MAC Patch Cords

    Ask Lasest Price
    Brand Name : DAWNERGY
    Model Number : DA-MAC
    Certification : ANATEL,CE,ROHS
    Price : 28USD
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 20K Per day
    Delivery Time : 12 days
    • Product Details
    • Company Profile

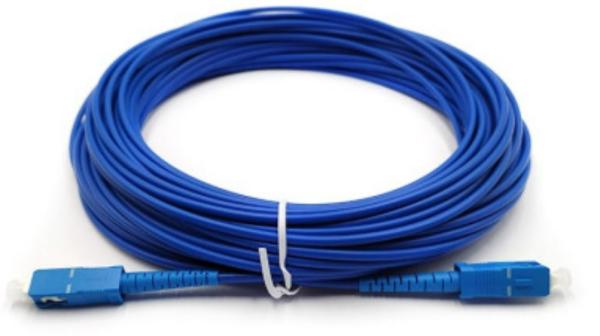

    Mini Armored Cable MAC Patch Cords

    Mini armored cable (MAC) patch cords

    Dawnergys mini armored cable (MAC) patch cords are available in either single mode or multi-mode for various applications such as long-haul telecommunication networks, short-link systems and equipment-to-equipment data links.

    Features

    • Low insertion loss
    • High return loss
    • Good repeatability

    Mini Armored Cable Structure


    Fiber Optic Cable Specifications

    ParameterSpecifications
    Fiber TypeSM (G652D, G657A) or MM (OM1~OM5) (OM1~OM5)
    Fiber Count1~12
    Tight Buffer FiberDiameter (mm)0.6±0.05
    Strength MemberAramid yarn
    BraidSUS304
    Cable Outer JacketMaterialPVC/LSZH/PU
    ColorBlue
    Cable Outer Diameter (mm) (±0.2)7.5
    Cable Weight (kg/km)75
    Tensile Strength (N)Long Term600
    Short Term800
    Crush Resistance (N/100mm)Long Term3000
    Short Term5000
    Cable Attenuation (dB/km)at 1310nm≤0.4
    at 1550nm≤0.3
    Bending Radius (mm)Dynamic20D
    Static10D
    Operating/storage Temperature (°C)-20 ~ +70

    Patch Cord Specifications

    ItemParameters
    Connector TypeSC/FC/LC/ST/E2000 or customized
    Fiber TypeSM (G652D, G657A) or MM (OM1~OM5)
    Insertion Loss (dB)≤0.3
    Return Loss (dB)≥ 50 (UPC), ≥ 60(APC), ≥ 30 (MM)
    Main CableFiber Count1~12
    Jacket MaterialPVC/LSZH/PU
    ColorBlue
    O. Diameter (mm) (±0.2)7.5
    Patch Cord Length (m)As request
    Tolerance (m)

    0~+0.1, L≤10,

    0~+0.2, 10~20,

    1%×L, L≥20, L=patch cord length

    BranchType3.0mm armored tube
    Length (mm)As request
    Operating/storage Temperature (°C)-20~+60
