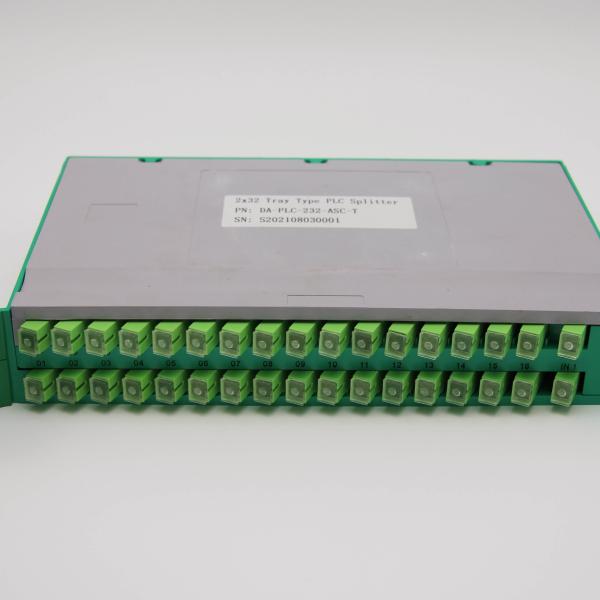

1XN 2XN Tray Type Fiber Optical PLC Splitter fiber optic splitter

Ask Lasest Price
Brand Name :	DAWNERGY
Model Number :	DA-PLC-1(2)XN-SCA-T
Certification :	Anatel,CE,ROHS
Price :	1.9-23.9 USD
Payment Terms :	T/T, L/C, D/A, D/P
Supply Ability :	10k Per Day
Delivery Time :	5 working days

Add to Cart

Product Details
Company Profile

1XN 2XN Tray Type Fiber Optical PLC Splitter fiber optic splitter

Tray type PLC splitter 1xN 2xN PLC splitter

Dawnergy’s planar light wave circuit (PLC) splitter is optical power management device which uses silica optical waveguide technology. It has small size, high reliability, wide operating wavelength range. It is widely used in PON networks and realizes optical signal power splitting. It is mainly installed in the fiber optic distribution hubs.

Features:

Low insertion loss
Low PDL
Good channel uniformity
High-reliability and stability
Qualified according to Telcordia 1209 and 1221 requirements

Parameters		1x2	1x4	1x8	1x16	1x32	1x64
Operating Wavelength(nm)		1260~1650
Insertion Loss (dB)	Typical	3.6	6.8	10	13.1	16.2	20
Insertion Loss (dB)	Max(P/S)	3.8/4.0	7.2/7.4	10.5/10.7	13.6/13.7	16.5/16.8	20.5/21.0
Uniformity (dB)	Typical	0.3	0.4	0.5	0.6	0.8	1.2
Uniformity (dB)	Max	0.4	0.6	0.8	1.2	1.5	2.5
PDL (dB)	Typical	0.1	0.1	0.15	0.15	0.15	0.2
PDL (dB)	Max	0.2	0.2	0.3	0.3	0.3	0.4
Return Loss (dB)	Min	55
Directivity (dB)	Min	55
Fiber Length (m)		1 (+/-0.05) or customer specified
Fiber Type		ITU-T G657A1 or customer specified
WDL (dB)	Typical	0.2	0.2	0.2	0.3	0.3	0.3
WDL (dB)	Max	0.3	0.3	0.3	0.5	0.5	0.5
TDL (dB) (-40~85℃)	Typical	0.2	0.2	0.2	0.3	0.3	0.3
TDL (dB) (-40~85℃)	Max	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)		-40~85
Storage Temperature (℃)		-40~85

Parameters		2x2	2x4	2x8	2x16	2x32	2x64
Operating Wavelength(nm)		1260~1650
Insertion Loss (dB)	Typical	3.7	7	10.8	13.6	16.8	20.5
Insertion Loss (dB)	Max(P/S)	3.9/4.2	7.5/7.8	11.2/11.5	14.2/14.5	17.4/17.7	21.0/21.5
Uniformity (dB)	Typical	0.5	1	1	1.2	1.5	2.2
Uniformity (dB)	Max	0.6	1.2	1.5	1.8	2	2.7
PDL (dB)	Typical	0.1	0.1	0.2	0.3	0.3	0.3
PDL (dB)	Max	0.2	0.2	0.4	0.4	0.4	0.4
Return Loss (dB)	Min	55
Directivity (dB)	Min	55
Fiber Length (m)		1 +/-0.05 or customer specified
Fiber Type		ITU-T G657A1 or customer specified
WDL (dB)	Typical	0.3	0.3	0.3	0.5	0.5	0.8
WDL (dB)	Max	0.4	0.4	0.5	0.6	0.8	1.2
TDL (dB) (-40~85℃)	Typical	0.3	0.3	0.3	0.4	0.4	0.4
TDL (dB) (-40~85℃)	Max	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)		-40~85
Storage Temperature (℃)		-40~85
Packaging Size(mm)		1(2) x 2,4,8,16,32: 483 (W) x 228 (D) x 44 (H) mm 1(2) x 64: 483 (W) x 228 (D) x 88 (H) mm
Notes: 1. Measurements are done at room temperature. Connector loss is excluded in the above specifications.
2. S=Standard grade, P=Premium grade

PLC (Planar Lightwave Circuit) splitters are made using a silica-based waveguide, which is fabricated using lithographic techniques. This allows for the precise control of the waveguide dimensions, which ensures accurate splitting of the optical signal. Planar lightwave circuits are compact, reliable, and have low insertion loss, making them ideal for use in high-speed fiber optic communication systems.
