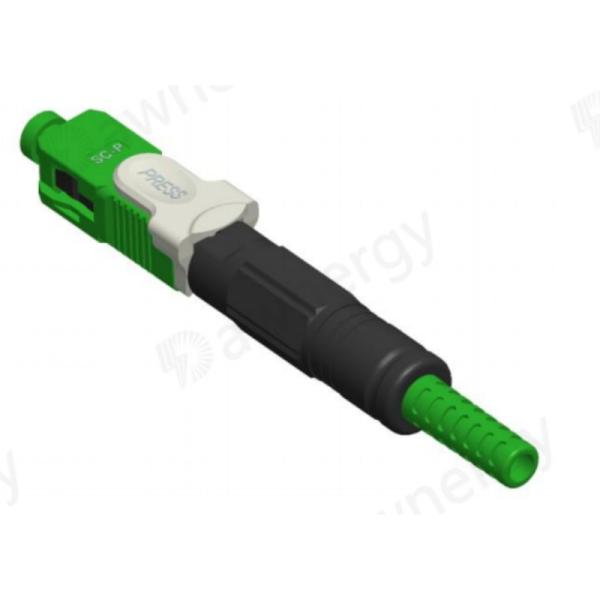

5.0mm, 5.5mm Fast Connector

Dawnergy’s pre-embedded fast connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. It is widely used in FTTH projects.

Features

• Factory-installed fiber stub, no epoxy and polishing required, inside with index-matching gel
• Product Length: 59mm(without soft tail)
• Cable: Mainly Suitable for Ф 5.0mm,Ф 5.5mm Round Cable
• Fiber: G657A1, G657A2, G657B3, Fiber Diameter 125um, *Coating Diameter 250um
• Operating Temperature: -40℃～+85℃
• Application: FTTH

Applications

• FTTH project
• PON network

Specification

Order Information

DA-PFC-ASC50-SM

Pre-embedded type, SC/APC; Applicable for Ф 5.0mm Round Cable, SM

DA-PFC-ASC55-SM

Pre-embedded type, SC/APC; Applicable for Ф 5.5mm Round Cable, SM
