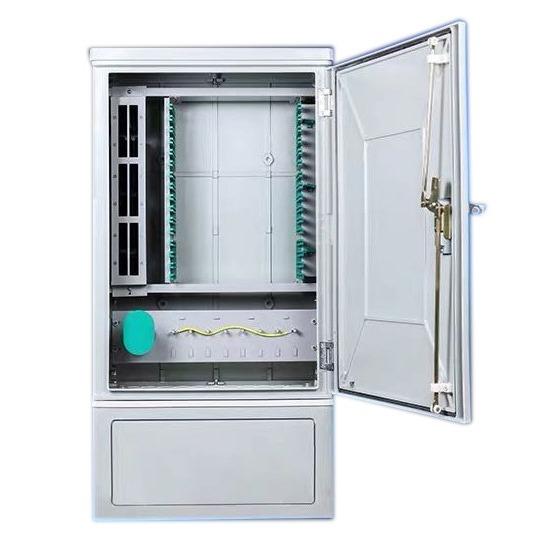

144 Core Steel Fiber Distribution hub With Module Type Splitter
Dawnergy’s Fiber distribution cabinet enables telecom operator &
service providers to maintain and manage the distribution of
connection in a disciplined manner for FTTX network. The cabinets
are specially designed and fabricated for outdoor operations
provided to bear extreme weather conditions and provide well
organized and centralized distribution of the connections.
The 144 Core Steel Fiber Distribution Hub with Module Type Splitter
is a type of fiber optic distribution hub that is used in
telecommunications and data networking applications. It is designed
to provide a centralized location for terminating and distributing optical fibers, which can be used
to deliver high-speed internet, TV, and telephone services.
Overview
Fiber distribution cabinet enables telecom operator & service
providers to maintain and manage the distribution of connection in
a disciplined manner for FTTX network. The cabinets are specially
designed and fabricated for outdoor operations provided to bear
extreme weather conditions and provide well organized and
centralized distribution of the connections.
Main Features
•Different capacity, available in 144, 288 and 576-fiber
distribution
• Plug in type Splitter
•Fully-closed structure, dust-resistance, waterproof,
anticorrosive, anti-theft,Beautiful
• Fiber bend radius, not less than 40 mm.
•Available in ribbon and non-ribbon cable, meeting the requirements
for using ribbon cables and non-ribbon cables.
•Safe and reliable function of storing and protecting optical
fibers.
•Clear labeling on each optical fiber
•Modular design; flexible configuration and convenient capacity
expansion.
•Separate module, easy for implementation and maintenance.
• Reliably fixing, stripping, and grounding and protecting optical
cables device
•Stainless Steel, available in ground-mounting ,wall-mounting and pole-mounting.
•IP 65 protection level
Specifications
| Parameters | Specification |
| Material | Cabinet | Cold rolled steel |
| Shell | 2.0mm Cold rolled steel sheet with 80um paint |
| Cable Fixing Board | SUS304 |
| Mounting Pillar | 1.5mm Cold rolled steel sheet |
| Plastic Part | UL94V0 |
| Available Install Equipment | Splitter trays or splice trays with angular SC/APC or SC/PC
adapters |
| Installation Type | Ground |
| Protection Rating | IP65 |
| Operating Temperature (°C) | -40~ +60 |
| Relative Humidity | ≤95％ (@+40℃) |
| Working Environmental Atmosphere Pressure (kpa) | 70~106 |
| Uncut Cable Inlet Ports | 2 |
| Grounding Device | Yes |
| Dimensions (mm) (L×W×H) | Cabinet (with base) | 1150 x 750 x 360 (for 144F) |
| Package | carton package with wooden pallet |
Configuration
144F FDH:
5pcs 2x32 angular SC/APC PLC splitter tray
Total 144F angular adapters integrated splice trays (12F per tray)
for Distribution side
Total 24F angular adapters integrated splice trays (12F per tray)
for Feeder side
2x32 angular SC/APC PLC splitter tray
Material: ABS
Size (W x H x D) (mm): 287 x 50 x 180
24F angular SC/APC integrated splice tray (two layers, 12F per
layer)
Material: ABS
Size (W x H x D) (mm): 287 x 25 x 180
Drawing (mm)
Ordering Information (SMC is option)
| Model | Name | Description |
| DA-FDH-144F-x | Outdoor Network Cabinet | Outdoor network cabinet; Material: 2mm Cold rolled steel; With
base; SUS304 cable fixing board; Dimensions (mm):1230(H)×750(W)
×360(D); carton package with wooden pallet; 5pcs 2x32 angular
SC/APC PLC splitter tray, Total 144F integrated splice trays (24F
per tray, each tray have two lever, each lever 12F) for
Distribution side, Total 24F integrated splice trays (24F per tray,
each tray have two lever, each lever 12F) for Feeder side, full
loaded angular SC/APC adapters and SC/APC pigtail; logo printing |
