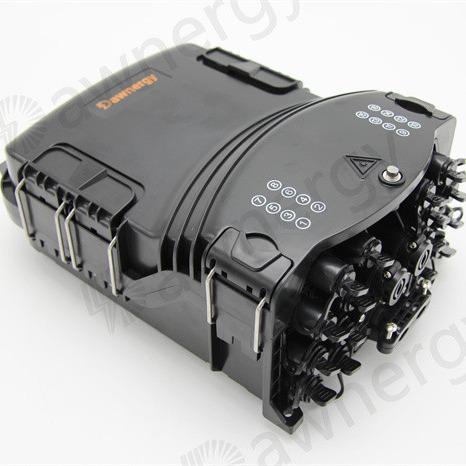

DA-16SX-20 Fiber Optic Distribution Box
Dawnergy’s DA-16SX-20 fiber optic distribution box is a device used
to terminate and distribute fiber optic cables in indoor or outdoor
environments. It is similar to the DA-8SX-20 distribution box but
is designed to accommodate up to 16 fiber optic cables, which can
be connected to various devices or equipment.
the DA-16SX-20 typically features an enclosure made of high-quality
plastic or metal, which protects the fiber optic cables and
connectors from damage or environmental factors. It is also
pre-installed with SC or LC adapters, which allows for easy
installation and connection to other fiber optic equipment or
cables.
Features
l Total enclosed structure.
l Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,
protection level up to IP65.
l Clamping for feeder cable and drop cable, fiber splicing,
fixation, storage. distribution...etc all in one.
l Cable,pigtails are running through their own paths without
disturbing each other, easy maintenance.
l Distribution panel can be flipped up, feeder cable can be placed
by expression port, easy for maintenance and installation.
l Box can be installed by the way of wall-mounted or poled-mounted,
suitable for both indoor and outdoor use.
Applications
l FTTH Solutions
Specifications
Environmental requirement
- Working temperature:-40℃～+85℃
- Relative humidity:≤85%(+30℃)
- Atmospheric pressure:70KPa～106Kpa
Thunder-proof technical datasheet
- The insulation resistance between the grounding device and the
metal parts of the box is no less than 2 MΩ/500V(DC)；IR≥2 MΩ/500V
- The voltage resistance between the grounding device, and the box
and its metal parts is no less than 3000V(DC)/min, no puncture,no
flashover；U≥3000V
| Material | Size A*B*C (mm) | Max Capacity | Suitable PLC Splitter Type | Cable Ports | Into the Largest Cable Diameter(mm) |
| Input | Output |
| PC+ABS | 319*214*133 | 3pcs 12F splice trays | 2pcs 1x8 mini type PLC | 1pc mid-span (2holes) 2pcs Single cable port | 16pcs Huawei Mini SC water-proof type SC adapter | 14 |
Product Installation
Wall-mounted installation
Pole-mounted installation

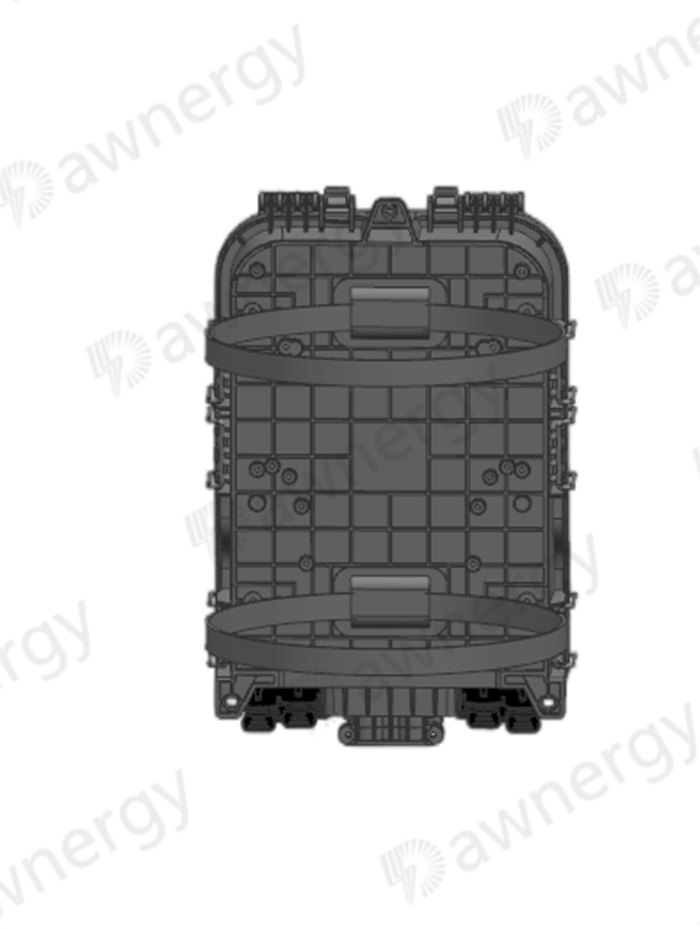

Product cable ways
Suitable for Huawei Type Mini SC Water Proof Adapter
Rotate the arrow part of fiber connector counterclockwise and take
out the dust cap.
The arrow part of fiber connector is above, insert fiber connector
into the socket and then rotate the arrow part clockwise.
Ordering Information
DA-8SX-20
Black; PC+ABS; With the adaptor panel for max. 8 pieces of Huawei
Mini SC water-proof adapters, 1 mid-span port (2cable inlet holes)
and 2pcs single cable ports for Max 14mm input cable; Dimensions
(mm): 319*200*97; Wall mounting accessories included(pole mounted
kits is option)
