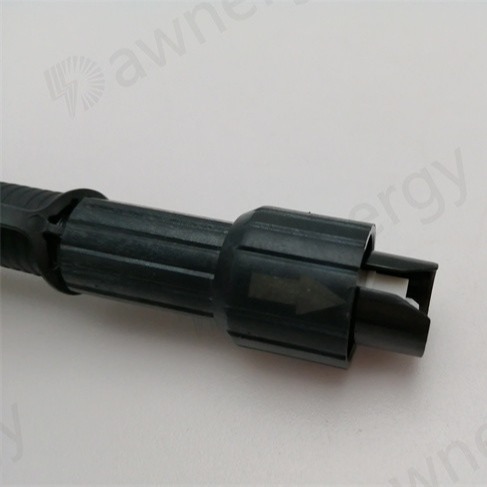

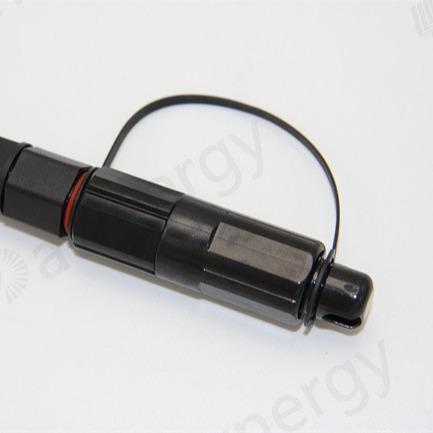

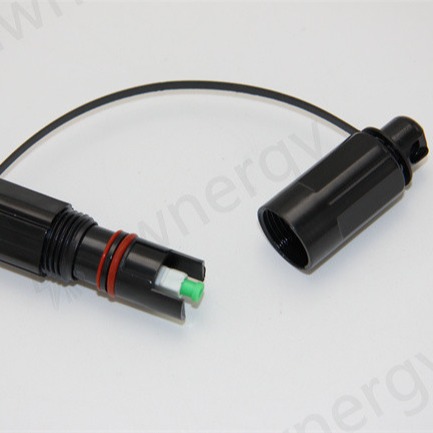

FTTA & FTTH Water-proof Patchcord

Dawnergy‘s water-proof patchcord ,in addition to their waterproof and moisture-resistant properties, waterproof patch cords are also designed to provide reliable and stable fiber optic connectivity with low insertion loss and high return loss. They are available in a variety of lengths and configurations, and can be used to connect fiber optic cables to antennas, routers, switches, and other network equipment.

Application

• Multi-purpose Outdoor
• For connection between distribution box and RRH
• Deployment in Remote Radio Head cell tower applications

Features

• Cost effective solution for in house termination
• IP67 water and dust protection
• Wide range of operational temperature for outside plant -40 to +85°C
• Different cable diameter can be available
• No need special tools for assembly

Patchcord Specifications

5.0mm Double Jacket Outdoor Cable Specifications

4x7 mm Flat Outdoor Cable Specifications

2x3 mm Flat Outdoor Cable Specifications

Optical Characteristics

End-Face Geometry

Test Conditions Reference

• Endurance 500 mattings IEC 61300-2-2
• Vibration Frequency: 10 to 55Hz, Amplitude: 0.75mm IEC 61300-2-1
• Cable retention 400N (main cable); 50N (connector part) IEC 61300-2-4
• Strength of coupling mechanism 80N for 2 to 3mm cable IEC 61300-2-6
• Cable torsion 15N for 2 to 3mm cable IEC 61300-2-5
• Fall 10 drops, 1m drop height IEC 61300-2-12
• Static lateral load 1N for 1h (main cable); 0.2N for 5min (ranch part) IEC 61300-2-42
• Cold -25°C, 96h duration IEC 61300-2-17 Dry heat +70°C, 96h duration IEC 61300-2-18
• Change of temperature -25°C to +70°C, 12 cycles IEC 61300-2-22
• Humidity +40°C at 93%, 96h duration IEC 61300-2-1

Package (Thin film winding and carton packing)

Picture just for reference
