FTTA & FTTH Water-proof Patchcord

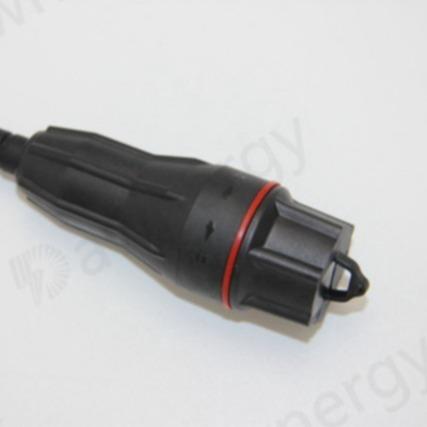

FullX Waterproof FTTA (Fiber to the Antenna) Patch Cord is a type of fiber optic cable assembly that is designed for outdoor use in harsh environments. FullX Waterproof FTTA Patch Cords are similar to ODVA and ODC waterproof FTTA patch cords in that they are designed to withstand harsh outdoor conditions such as rain, dust, and extreme temperatures.

Application

• Multi-purpose Outdoor
• For connection between distribution box and RRH
• Deployment in Remote Radio Head cell tower applications

Features

• Cost effective solution for in house termination
• IP67 water and dust protection
• Wide range of operational temperature for outside plant -40 to +85°C
• Different cable diameter can be available
• No need special tools for assembly

Patchcord Specifications

5.0mm Outdoor Cable Specifications

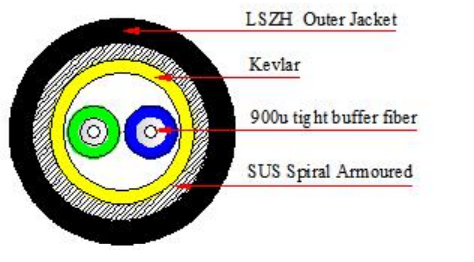

5.0mm Armour Outdoor Cable Specifications

7.0mm Armour Outdoor Cable Specifications

7.0mm Outdoor Cable Specifications

Optical Characteristics

End-Face Geometry

Test Conditions Reference

• Endurance 500 mattings IEC 61300-2-2
• Vibration Frequency: 10 to 55Hz, Amplitude: 0.75mm IEC 61300-2-1
• Cable retention 400N (main cable); 50N (connector part) IEC 61300-2-4
• Strength of coupling mechanism 80N for 2 to 3mm cable IEC 61300-2-6
• Cable torsion 15N for 2 to 3mm cable IEC 61300-2-5
• Fall 10 drops, 1m drop height IEC 61300-2-12
• Static lateral load 1N for 1h (main cable); 0.2N for 5min (ranch part) IEC 61300-2-42
• Cold -25°C, 96h duration IEC 61300-2-17 Dry heat +70°C, 96h duration IEC 61300-2-18
• Change of temperature -25°C to +70°C, 12 cycles IEC 61300-2-22
• Humidity +40°C at 93%, 96h duration IEC 61300-2-1

Package (Thin film winding and carton packing)
