DA-PFC-50K Fast Connector

This specification defines the characteristics of SC UPC/APC Field Installable Connector with G652D/G657A1/G657A2 fiber in a pre-polished SC UPC/APC ferrule. This Field Installable Connector is produced by Dawnergy which is designed to be used with butterfly drop cable of 3.0mmx2.0mm dimension.

Features

• Pre-terminated fiber in the ferrule, no epoxy, curing and polishing
• Stable optical performance and reliable environmental performance
• Cost effective and user friendly, termination time with Tripping and cutting Tool
• Low cost redesign, competitive price

Applications

• FTTH project

Drawing of Connector

Drawing of Cables

The outline of the fitted butterfly 2x3mm flat drop cable and 3.0mm simplex cable are as follows:

Construction

It is acceptable for customer to label their company logo or name, etc., by laser marking on the surface of connector. It is also negotiable to change the color of connector per customer’s request. The standard color of main body of connector is Green/Blue

Specification

Parameters	Specification
Applicable Cable	3.0 x 2.0mm drop cable and 3mm round cable
Fiber Type	SM G652D/G657A1/G657A2
Working wavelength	1310 nm, 1490 nm, and 1550 nm
Coating diameter	250um
Fiber length
Insertion Loss	Max.≤0.5dB, Typical≤0.3dB
Return Loss	Max. APC≤-50dB, Typical≤-55dB Max UPC≤-40dB, Typical≤-45dB
3D Geometry	Complies to IEC standard
Ferrule End Face	A Zone no scratches at 400X
Tensile Strength	＞25N
Average Assembling Time	≤3 min
Number of reuses	≥ 5 times
Operating Temperature (℃ )	-20 ~ +75
Storage Temperature (℃ )	-40 ~ +85
Life Time	≥10 years

Guide Tool

Every 50pcs fast connector have 1 guide tool

Package

1. 5pcs in a small blister box, 10 blisters in a inner box.

A small blister box Include:

5pcs fast connectors

1pc user manual

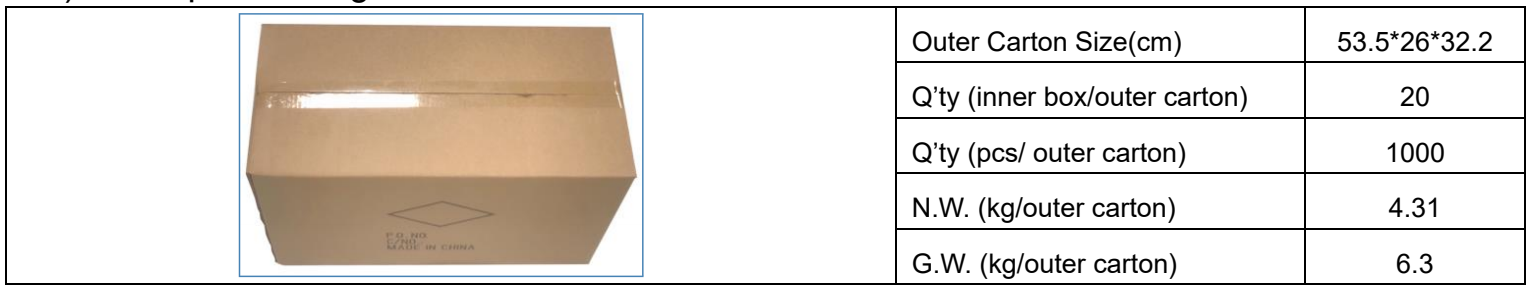

2. 1,000pcs in a big carton
