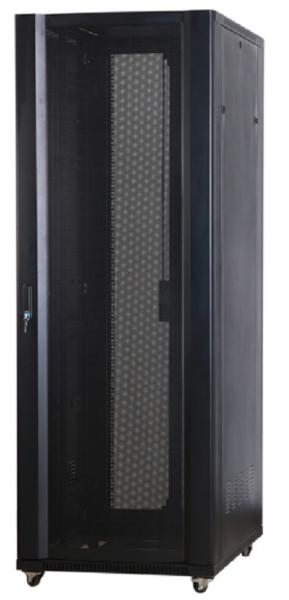

Network Cabinet

A network cabinet, also known as a network rack or server rack, is a piece of physical infrastructure used to house and organize network equipment and related components. It provides a secure and centralized location for networking devices, servers, switches, patch panels, power distribution units (PDUs), and other networking hardware.

Product Features

Exquisite design with precise dimension and craftsmanship

Applicable for all 19” rack-mounted equipment conforming to ANSI/ EIA standard (customized products include)

• Solid modular alloy steel frame, maximum static load capacity up to 800 KG
• Widened cabinet structure design, equipping with vertical cable ducts to orderly lay a large volume of cables
• Movable equipment mounting pillars for different depth equipment
• Top and bottom cover plates both with cabling passageways for various cabling requirements

Technical Specification

• Material: Mounting profile: 2.0mm Cold rolled steel sheet (SPCC); Others 1.2mm SPCC
• Load Capacity: Up to 800KG
• Optional Color: Black
• Surface Finish: Degreasing, Pickling, Phosphor zing, electrostatic powder spraying
• Protection Category: IP20

Dimensions

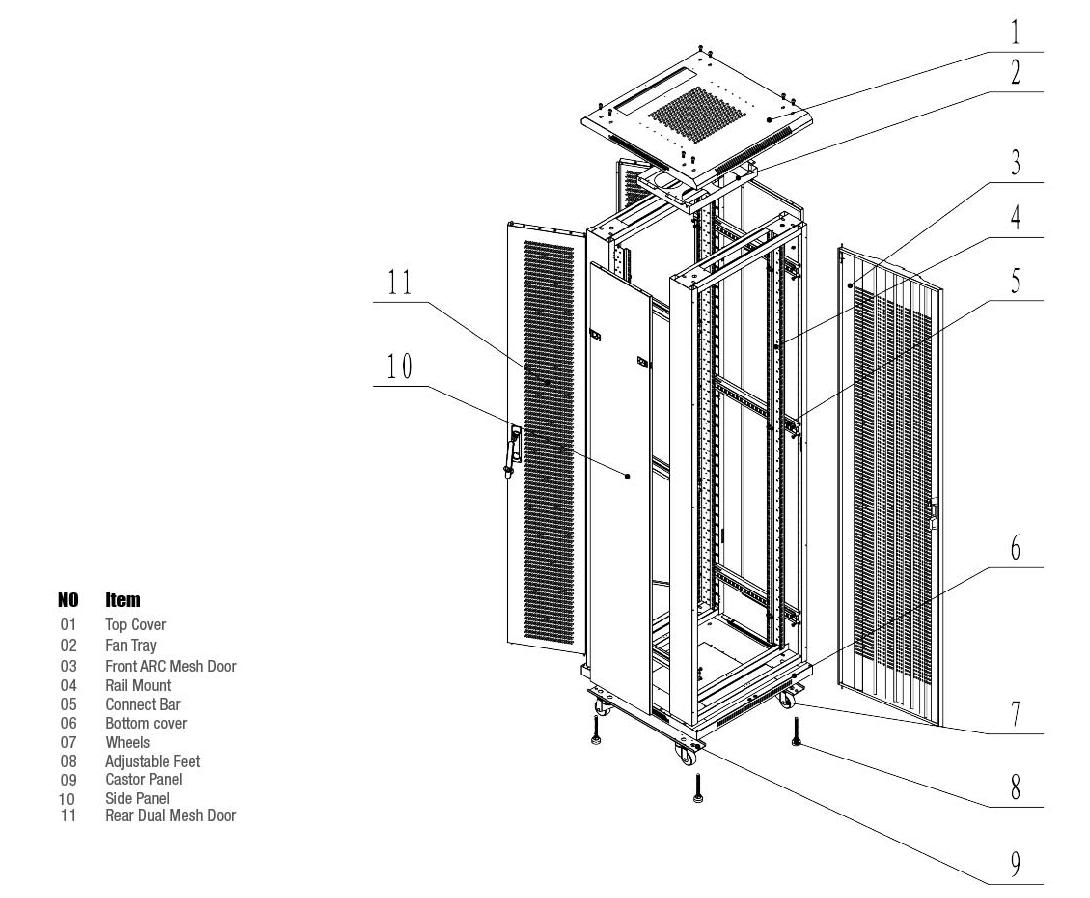

Standard Configuration

Accessories

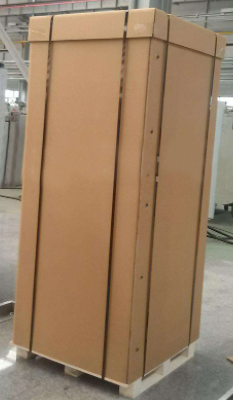

Package

Assembly (carton with wooden pallet)

Network cabinets come in various sizes and configurations to accommodate different equipment and installation requirements. The most common size is a 19-inch rack, which refers to the width of the equipment that can be mounted within the cabinet. The height of a network cabinet is measured in rack units (U), with each U being 1.75 inches (44.45 mm) in height. Typical rack heights range from 1U to 48U or more.

Dawnergy is an ISO qualified fiber optic solution provider. With solid production capacity, leading R&D strength and strong customization capabilities in the industry, we have supplied fiber optic products to over 65 countries around the world.

Our main products are: Fiber Optic Cables, Fiber Optical Splitters,Fiber Optic Patch Cord, Pigtails,WDM Modules, Fiber Distribution Boxes, Fiber Optic Sockets,Optical Distribution Cabinets/Hubs,Outdoor Telecom Cabinets, Optical Distribution Frames,Network Rack cabinets, etc. Domestically, our shareholders have a large market share in the centralized procurement of China Telecom, China Mobile, China Unicom and China Tower. At the same time, we are also a qualified supplier for major internationally renowned equipment manufacturers and fiber optic cable manufacturers. Our products are also widely used in special networks such as radio broadcast, television, electric power and military.

Specifically in the international market, through direct supply, partnering with local distributors, or cooperating with internationally renowned communication solution providers, our products have been widely used in the FTTH networks of the following operators: TELEFONICA, TIM , STC, BSNL, TOT, CAT, PLDT, TELKOM INDONESIA, TM, NEPAL TELECOM, AIRTEL, etc.
