GYDAG 144 288 Cores Outdoor Fiber Optic Cable

Ask Lasest Price
Brand Name :	Dawnergy
Model Number :	GYDAG
Payment Terms :	L/C, D/A, D/P, T/T

Add to Cart

Product Details
Company Profile

GYDAG 144 288 Cores Outdoor Fiber Optic Cable

1. General

This specification covers the requirements for the supply of single-mode and multimode optical fiber cables
The optical fiber cable comply with the requirements of this specification and generally meet any latest relevant ITU-T Recommendation

2. Fiber characteristics

2.1 G.652D

2.1.1 Geometric characteristics

Item		Construction
Mode field diameter	At 1310nm	9.2±0.5μm
Cladding diameter		125±1.0μm
Core concentricity error		≤0.6μm
Cladding non-circularity		≤1.0%
Cut-off wavelength (λcc) (for cable)		≤1260nm
Cut-off wavelength (λc) (for fiber)		1180nm~1330nm
Primary coating diameter	(Not included color layer)	245±10μm
	(Included color layer)	250±15μm
Coating-cladding concentricity error		≤12.0μm
Fiber curl radius		≥4m

2.1.2 Transmission characteristics

Item		Performance
Attenuation	At 1310nm	≤0.40dB/km
Attenuation	At 1550nm	≤0.30dB/km
Macro bending loss	Φ=60mm, 100turns at 1550nm&1625nm	≤0.05dB
Macro bending loss	Φ=32mm, 1turn at 1550nm&1625nm	≤0.05dB
Chromatic dispersion	Within 1288~1339nm	≤3.5ps/nm·km
Chromatic dispersion	At 1550nm	≤18ps/nm·km
Zero dispersion wavelength		1300~1324nm
Zero dispersion slope		≤0.092ps/nm²·km

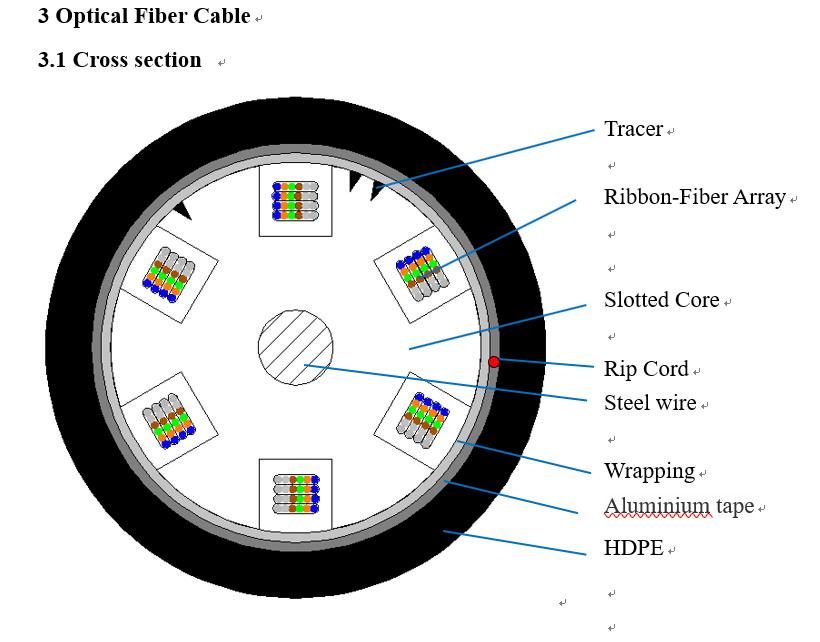

3.2 Dimension of the cable

Amount of fiber	Fibers per ribbon	Ribbons per slot	Slot No.	*Nom. thickness of sheath	Diameter (Appr.)	Weight (Appr.)
Amount of fiber	Fibers per ribbon	Ribbons per slot	Slot No.	mm	mm	Kg/km
144	6	4	6	1.8	15.0	183
288	6	6	8	1.8	18.3	256

*: The minimum thickness of the sheath shall be 1.5mm.

3.3 Performance

ITEM

TEST METHOD

SPECIFICATION

Tensile performance

IEC60794-1-21-E1

-Short-term load: 2700N

- Time: 5 minute

Loss change £ 0.10 dB@1550 nm

(after test)

- No sheath damage

Crush test

IEC60794-1-21-E3

- Load: 1000 N /100mm

- Time: 5 minute

- Length: 100 mm

Loss change £ 0.10 dB@1550 nm

(after test)

- No sheath damage

Impact test

IEC60794-1-21-E4

- Impact hight:1m

- Impact weight:450g

- Points of impact: 3

- Times of per point: 2

- Curvature radius: 300mm

Loss change £ 0.10 dB@1550 nm

(after test)

- No sheath damage

Repeated bending

IEC60794-1-21-E6

- Bending radius.: 20 × D

- Load: 150N

- Flexing rate: 2sec/cycle

- No. of cycle: 25

- No fiber break

- No sheath damage

Water penetration

IEC60794-1-22-F5

- Height of water: 1m

- Sample length: 3 m

- Time: 24 hr

- No drip through the cable core assembly

Twist

IEC60794-1-21-E7

- Length: 1 m

- Load: 150N

- Twist rate: ≤60sec/cycle

- Twist angle: ±180°

- No. of cycle: 5

Loss change £ 0.10 dB@1550 nm

(after test)

- No sheath damage

Temperature

Cycling

IEC60794-1-22-F1

- Temperature step:

+20^oC→-20^oC→+70^oC→+20^oC

- Number of cycle: 2 turns

- Time per each step: 12 hrs

- Loss change £ 0.15dB/km@1550 nm

(during test)

- Loss change £ 0.05dB/km@1550 nm

(after test)

- No sheath damage

D*: Cable diameter

3.4 Coding

Ribbon identification

Fiber Count	Slot No.	Ribbon No.				Fiber No.
			No.1	No.2	No.3		No.4	No.3	No.4
144	1-6	1	Blue	White	White		White	White	Pink
		2	Orange	White	White		White	White	Pink
		3	Green	White	White		White	White	Pink
		4	Brown	White	White		White	White	Pink

Fiber Count	Slot No.	Ribbon No.				Fiber No.
			No.1	No.2	No.3		No.4	No.3	No.4
288	1-8	1	Blue	White	White		White	White	Pink
		2	Orange	White	White		White	White	Pink
		3	Green	White	White		White	White	Pink
		4	Brown	White	White		White	White	Pink
		5	Grey	White	White		White	White	Pink
		6	White	White	White		White	White	Pink
