Outdoor Fiber Optic Cable Slotted Ribbon Cable GYDGA53

Ask Lasest Price
Brand Name :	Dawnergy
Model Number :	GYDGA53
Payment Terms :	L/C, D/A, D/P, T/T

Add to Cart

Product Details
Company Profile

Outdoor Fiber Optic Cable Slotted Ribbon Cable GYDGA53

1. General

1.1 This specification covers the requirements for the supply of single stranding slotted core type optical fiber ribbon cables.

1.2 The single mode optical fiber cable comply with the requirements of this specification and generally meet any latest relevant ITU-T Recommendation G.652D.

2. Fiber characteristics

2.1 G.652D

2.1.1 Geometric characteristics

Item			Construction
Core material			Doped silica
Cladding material			Silica
Mode field diameter	At 1310nm		9.2±0.4μm
Cladding diameter			125±1μm
Core concentricity error			≤0.6μm
Cladding non-circularity			≤1.0%
Cut-off wavelength (λcc) (for cable)			≤1260nm
Cut-off wavelength (λc) (for fiber)			1100nm~1280nm
Primary coating material			UV curable acrylate
Primary coating diameter of first layer			200±15μm
Primary coating diameter			250±15μm
Coating-cladding concentricity error			≤12.0μm
Fiber curl radius			≥4m
Proof stress level			≥0.5%
Breaking Load			≥4.5 kgf
Size of ribbon coating			1.1mm*0.3mm(4-ribbon)
			2.1mm*0.3mm(8-ribbon)
Refractive index		At 1310nm	1.466
		At 1550nm	1.467

2.1.2 Transmission characteristics

Item		Performance
Attenuation	At 1310nm (Cabled)	≤0.40dB/km
	At 1310nm (Uncabled)	≤0.34dB/km
	At 1550nm (Cabled)	≤0.25dB/km
	At 1550nm (Uncabled)	≤0.20dB/km
	At 1383nm (Cabled)	≤0.36dB/km
	At 1383nm (Uncabled)	≤0.34dB/km
Macro bending loss	Φ=30mm, 100turns at 1550nm	≤0.1dB
PMD	Maximum Individual Fiber	≤0.2 ps/√km
PMD	Link design value	≤0.08 ps/√km
Chromatic dispersion	Within 1288~1339nm	≤3.5ps/nm·km
	Within 1339~1360nm	≤5.3ps/nm·km
	Within 1271~1288nm	≤5.3ps/nm·km
	At 1550nm	≤18ps/nm·km
Zero dispersion wavelength		1300~1324nm
Zero dispersion slope		≤0.092ps/nm²·km

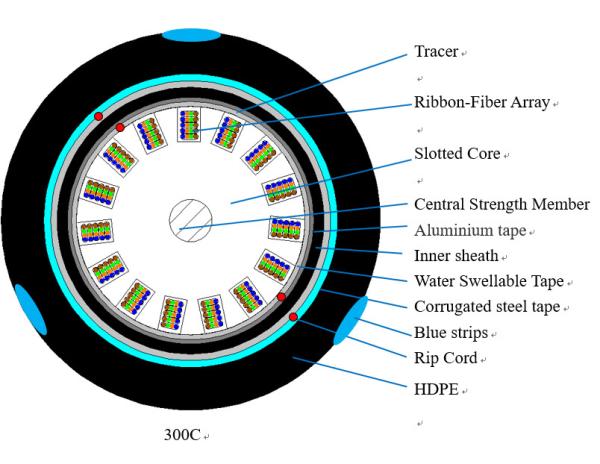

3.2 Dimension of the cable

Amount of fiber	Fibers per ribbon	Ribbons per slot	Slot No.	Armouring thickness	Stripes	***Nom. thickness of sheath	Diameter (Appr.)	Weight (Appr.)
Amount of fiber	Fibers per ribbon	Ribbons per slot	Slot No.	mm	mm	mm	mm	Kg/km
300	4	5	15	0.21	3*0.5	2.3	26.9	523
600	8	10	8	0.21	3*0.5	2.3	28.4	548

***: The minimum thickness of the sheath shall be 2.0mm.

3.3 Coding

Ribbon identification

Fiber Count	Slot No.	Ribbon No.	Fiber No.
Fiber Count	Slot No.	Ribbon No.	No.1	No.2	No.3	No.4
300	1-15	1	Blue	White	White	Pink
		2	Yellow	White	White	Pink
		3	Green	White	White	Pink
		4	Red	White	White	Pink
		5	Purple	White	White	Pink

Fiber Count	Slot No.	Ribbon No.	Fiber No.
Fiber Count	Slot No.	Ribbon No.	No.1	No.2	No.3	No.4	No.5	No.6	No.7	No.8
600	1-8	1	Blue	White	Pink	White	White	Blue	White	Pink
		2	Yellow	White	Pink	White	White	Yellow	White	Pink
		3	Green	White	Pink	White	White	Green	White	Pink
		4	Red	White	Pink	White	White	Red	White	Pink
		5	Purple	White	Pink	White	White	Purple	White	Pink
		6	Brown	White	Pink	White	White	Brown	White	Pink
		7	Black	White	Pink	White	White	Black	White	Pink
		8	Aqua	White	Pink	White	White	Aqua	White	Pink
		9	Orange	White	Pink	White	White	Orange	White	Pink
		10	Grey	White	Pink	White	White	Grey	White	Pink

3.4 Performance

ITEM

TEST METHOD

SPECIFICATION

Tensile performance

IEC60794-1-21-E1

-Short-term load:2060N

- Time: 5 minute

Loss change £ 0.05 dB@1550 nm

(after test)

- No sheath damage

Crush test

IEC60794-1-21-E3

- Load: 4000 N /100mm

- Time: 5 minute

- Length: 100 mm

Loss change £ 0.05 dB@1550 nm

(during test)

- No sheath damage

Impact test

IEC60794-1-21-E4

- Impact hight:1m

- Impact weight:500g

- Points of impact: 3

- Times of per point: 2

Loss change £ 0.05 dB@1550 nm

(during test)

- No sheath damage

Repeated bending

IEC60794-1-21-E6

- Bending radius.: 20 × D

- Load: 150N

- Flexing rate: 2sec/cycle

- No. of cycle: 25

- No fiber break

- No sheath damage

Compound flow

IEC60794-1-21-E14

- Temperature: 70±2 ^oC

- No compound flow in 24 hours

Bend test

IEC60794-1-21-E11

- Mandrel diameter: 20 × D

- No. of cycle: 3

- Loss change £ 0.05 dB@1550 nm

- No fiber degradation

- No jacket damage

Water penetration

IEC60794-1-22-F5

- Height of water: 1m

- Sample length: 3 m

- Time: 24 hr

- No drip through the cable core assembly

Twist

IEC60794-1-21-E7

- Length: 1 m

- Load: 150N

- Twist rate: ≤60sec/cycle

- Twist angle: ±90°

- No. of cycle: 5

Loss change £ 0.05 dB@1550 nm

(during test)

- No sheath damage

Temperature

Cycling

IEC60794-1-22-F1

- Temperature step:

+20^oC→-40^oC→+70^oC→+20^oC

- Number of cycle: 2 turns

- Time per each step: 12 hrs

- Loss change £ 0.15dB/km@1550 nm

(during test)

- Loss change £ 0.05dB/km@1550 nm

(after test)

- No sheath damage

D*: Cable diameter

3.5 Minimum bend radius

	Installation	Operation
GYDGA53	20D	10D
