Optical Distribution Unit 19 inch installation Slide Withdrawble Type 24 cores SCUPC 1U

Applications

• Telecommunication Closets
• Data Centers
• Customer Premise
• Central Offices
• Hubs
• Cabinets
• Remote Terminals

Structure and Material

• Cold rolled steel sheet material, thickness 1.2mm
• Black or grey powder coating
• Universal mounting bracket
• 19” & 21” rack compatible
• Rugged construction, ensuring environmental, mechanical, and optical integrity

Specifications

• Operating Temperature: -20~+55℃
• Relative humidity: ≤85% (30℃)
• Atmosphere pressure: 70~106KPa
• Insulation Resistance: ≥2x10MΩ/500V(DC)

Dimensions

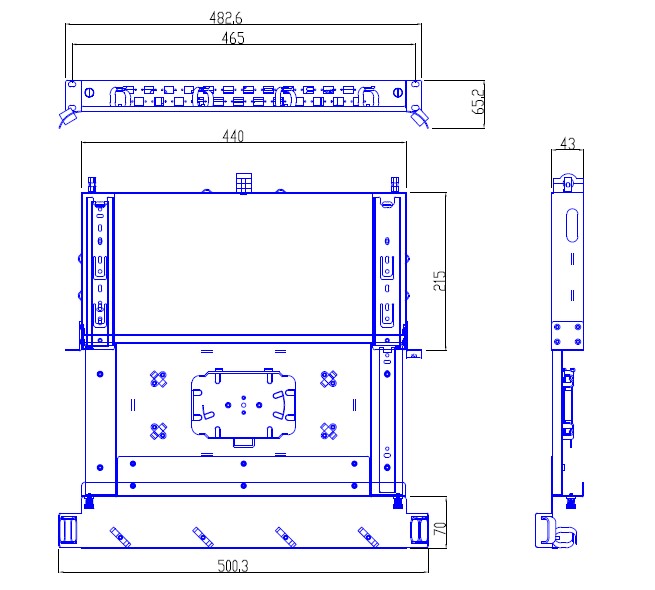

Dimension of 24 Core Patch Panel (SC)

Internal Fiber Routing

Inner Fiber Routing
