Telecom 1*24 CTO 24 Cores Fiber Distribution Box Fiber Termination Box Telefonica FDB 24N

Fiber optic distribution boxes play a vital role in ensuring efficient and reliable connectivity in fiber optic network systems. They offer a centralized and secure solution for managing fiber connections, splices, and distributions in various applications, including FTTx networks.

Features:

• Total enclosed structure.
• Material: PP,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP68.
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
• Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.
• Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
• Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Specification:

1,Environmental requirement

Working temperature:-40℃～+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa～106Kpa

2,Main technical datasheet

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:＞1000 times

3,Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2x10⁴MΩ/500V(DC)；IR≥ 2x10⁴MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover；U≥3000V

Configuration table:

Table 1 Model and configuration

Pic 1 Box Size Pic 2 Installation Size

Product cable ways:

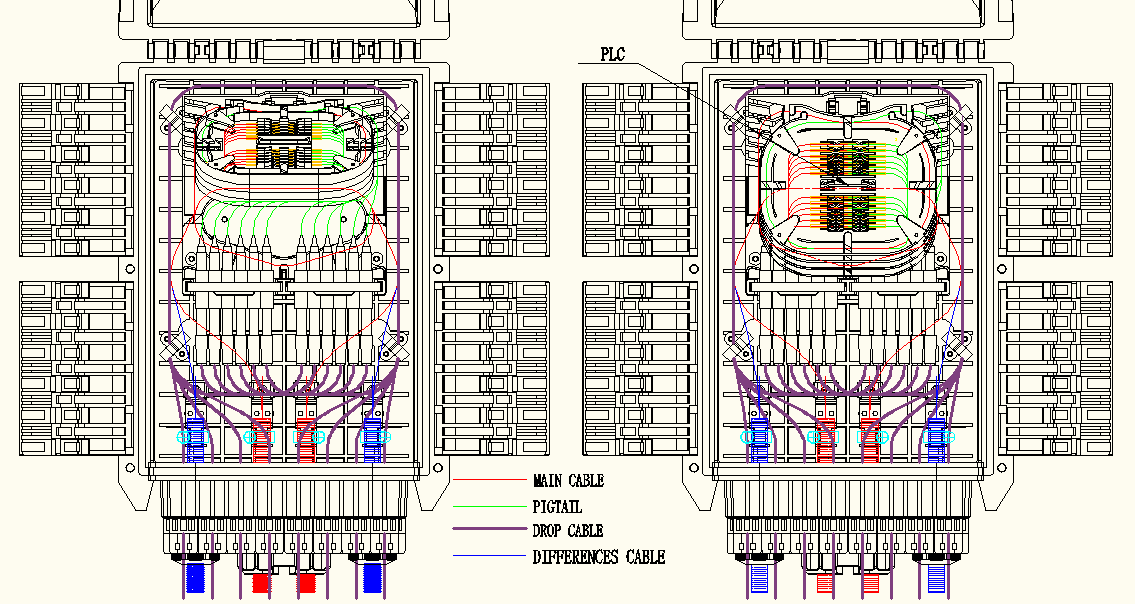

Pic 3 24 Core Cable ways

Pic 4 16 Core Cable ways

Installation:

1．Wall-mounted installation

According to the size of table 1 of hanging wall with percussion drill play two holes on the wall, knock into the metal tube, will be installed back the case according to the punching position on the wall, and completely fixed screw.(Pic 5)

2．Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole .(Pic 6)

Pic 5 Wall mounted installation Pic 6 Pole mounted installation

Accessories:

1. Users' Manual*1.

2. Key*1.

3. Accessories Bag * 1

4. Easy pole ring*2(Option)
