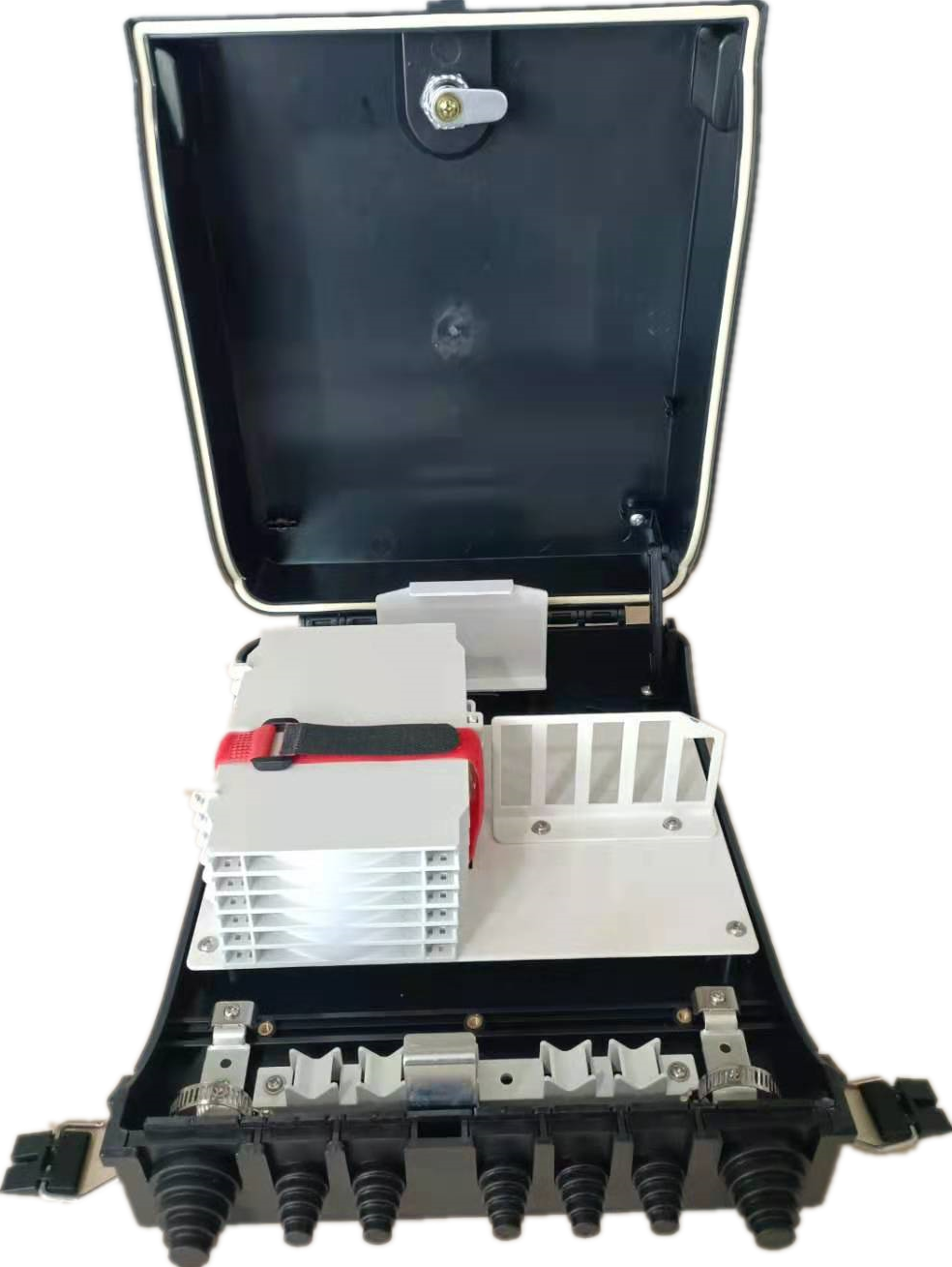

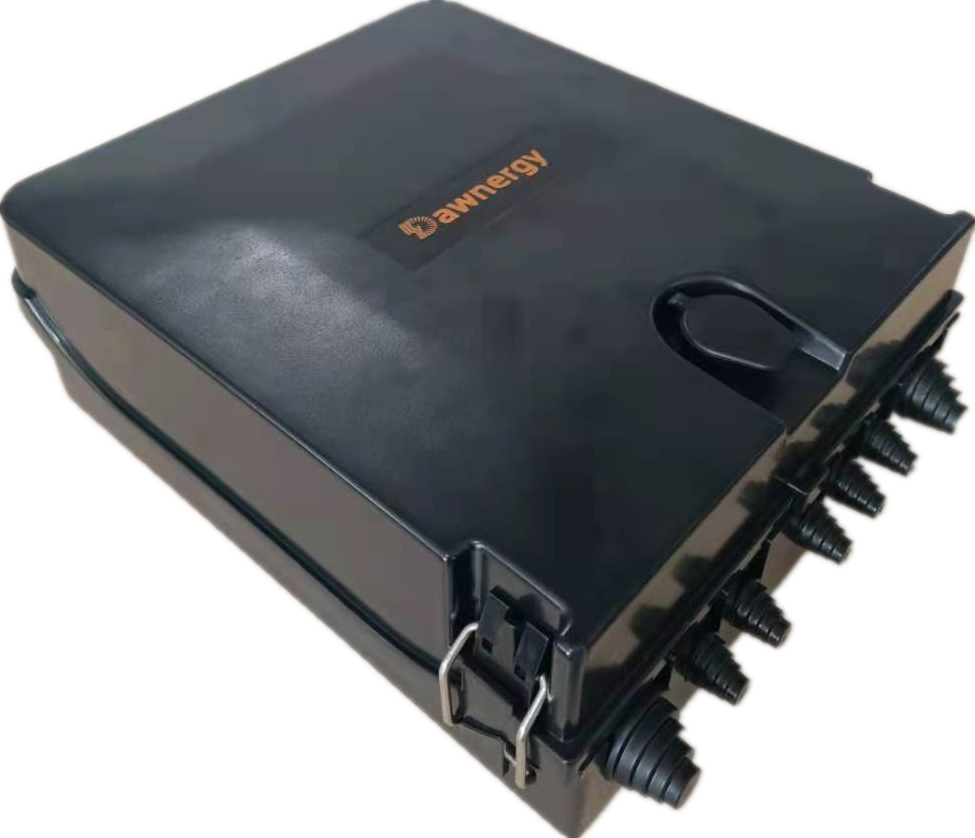

DA-FDB-24D-A-8 Fiber Optic Distribution Box

A Fiber Optic Distribution Box is a device used in fiber optic networks to terminate, splice, and distribute optical fibers. It serves as a central point for managing and organizing fiber optic cables and connections. The distribution box typically features multiple ports or compartments to accommodate incoming and outgoing fiber cables.

Features

• Total enclosed structure.
• Material: PC+ABS,wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
• Feeder Cable, distribution cable, pigtails are running through individual paths without disturbing each other, neat cabling, easy for maintenance.
• Distribution panel easy for maintenance and installation.
• Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Applications

• FTTH access networks
• Telecommunication networks
• Local Area Networks

Specifications

1. Environmental specification

Working temperature:-40℃～+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa～106Kpa

2. Thunder-proof technical specification

• The grounding device is isolated with the cabinet, isolation resistance is less than 2 MΩ/500V (DC)
• The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover

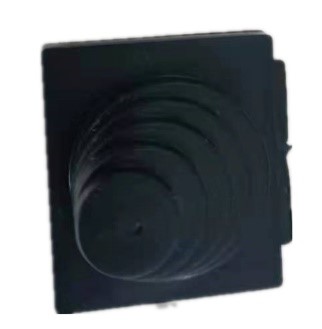

Cable fixing device and sealing plug

One cable sealing plug adapted to different cable diameters

Standard Package

Ordering Information
