    Wall Mounted Metal Fiber Optic Distribution Box FTTH Access Networks

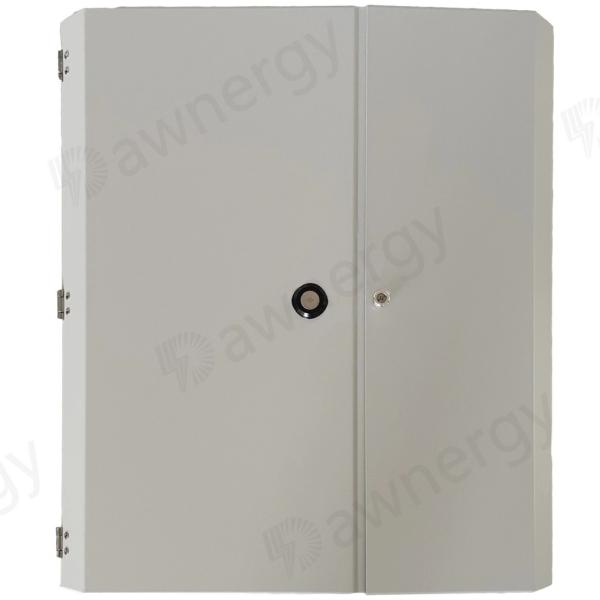

    DA-MFDB-96TD Wall-mounted Metal Fiber Optic Distribution Box


    Dawnergy’s fiber optic distribution boxes are widely used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting and distribution can be done in these boxes. These series of boxes provide solid protection and management for the FTTx networks.


    Applications

    • FTTH access networks
    • Telecommunication networks
    • CATV networks
    • Local Area Networks

    Specifications

    ParametersSpecification
    Max. Capacity of Adapter96
    Adapter TypeSC APC or SC/UPC
    Installation MethodWall mounting
    No. of Fibers/Tray12F/24F per tray
    Insulation ResistanceBetween the metal component and the ground is ≥2× 104m Ω
    Withstand VoltageNo breakdown and no arcs between the metal component and the ground under the action of 15kV (DC)/1min
    ColorGray RAL7035
    Material1.2mm Cold-rolled steel
    Max Dimensions (mm)477*410*156(96F)

    Standard Package

    No.NameUnitQuantity
    1Fiber optic distribution boxpiece1
    2Hose Clamp (12~20mm)pieces3
    3Protection Tube 5mm 10mpiece1
    4Fusing Splice Protection Sleevepieces96
    5Cable Tie (3x150mm)pieces20
    6Wall Mounted Kits (standard)set1
