DA-FOSC-DM288-P-829-C

Dome Type Fiber Optic Splice Closure

Dawnergy's Dome type fiber optic splice closure is a multifunctional fiber splice equipment which is designed for cable connection and branching. This FOSC has 1 oval cable port and 6 round cable ports. It is suitable for aerial, wall, pole, manhole installation.

Features

• Cable diameter: 1 Uncut port support φ10～22mm cable, 6 branch ports support φ8～18mm cable.
• The internal fiber tray adopts hinge connection design, and the optical fiber welding is convenient and fast.
• Installation method: Suitable for aerial, wall, pole, manhole, etc.
• The box body adopts mechanical seal, and the cable mouth adopts mechanical seal.

Applications

• FTTH access networks
• Telecommunication networks
• CATV networks
• Local Area Networks

Specifications

Structure Drawing (mm)

PLC Splitter Tray (option)

PLC splitter tray is optional (max support to 2x16 mini type)

Loose Tube Storage Plate

Installation

Pole mount Wall mount

Standard Accessories

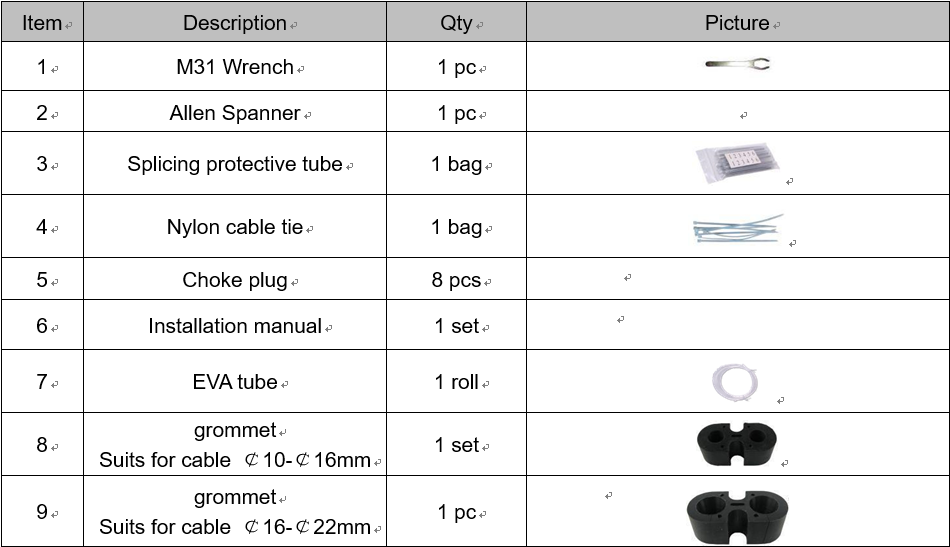

Optional accessory

Ordering Information

Example:

DA-FOSC-DM288-P-829-C-144F

Dome type, Mechanical sealing; 144 fibers, 6 trays of 24 fibers/tray included; 7 cable ports (1 oval cable port and 6 round cable ports); max capacity: 288 fibers; material: PP+GF, dimensions (mm): 610 (H)*260 (D)

DA-FOSC-DM288-P-829-C-288F

Dome type, Mechanical sealing; 288 fibers, 12 trays of 24 fibers/tray included; 7 cable ports (1 oval cable port and 6 round cable ports); max capacity: 288 fibers; material: PP+GF, dimensions (mm): 610 (H)*260 (D)

Ps: The actual fiber core number shall be subject to the contract
