Table 3 Channels List: Passbands for 60 channel AAWG

3.Environmental Conditions and Maximum Ratings

Table 4 Environmental conditions

Parameters	Notes	Specifications			Units
		Min	Typ	Max
Operating Temperature		-5		+65	°C
Storage Temperature		-40		+85	°C
Relative Humidity		0		95	%

4.Mechanical Specifications

4.1.Mechanical Drawing

Figure 2 AAWG planar drawing

4.2.Fiber Length

Parameters	Notes	Specifications			Units
		Min	Typ	Max
Optical Fiber Terminations		LC/UPC
Package Size	(L*W*H)	120*70*10.5			mm³
Common Fiber Length	Including connector	L: 500±50			mm
Common Fiber Type		900μm loose tube G657A2
Fiber from module to fan-out		L1: 500±50			mm
Fiber from fan-out to connectors	Including connectors	L2: 500±50			mm
Channel Fiber Type		900μm loose tube G657A2

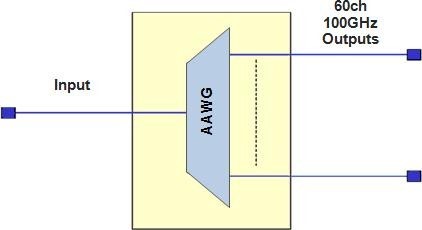

Figure 3 AAWG module structure and fiber length illustration

4.3.FANOUT BOX Drawings

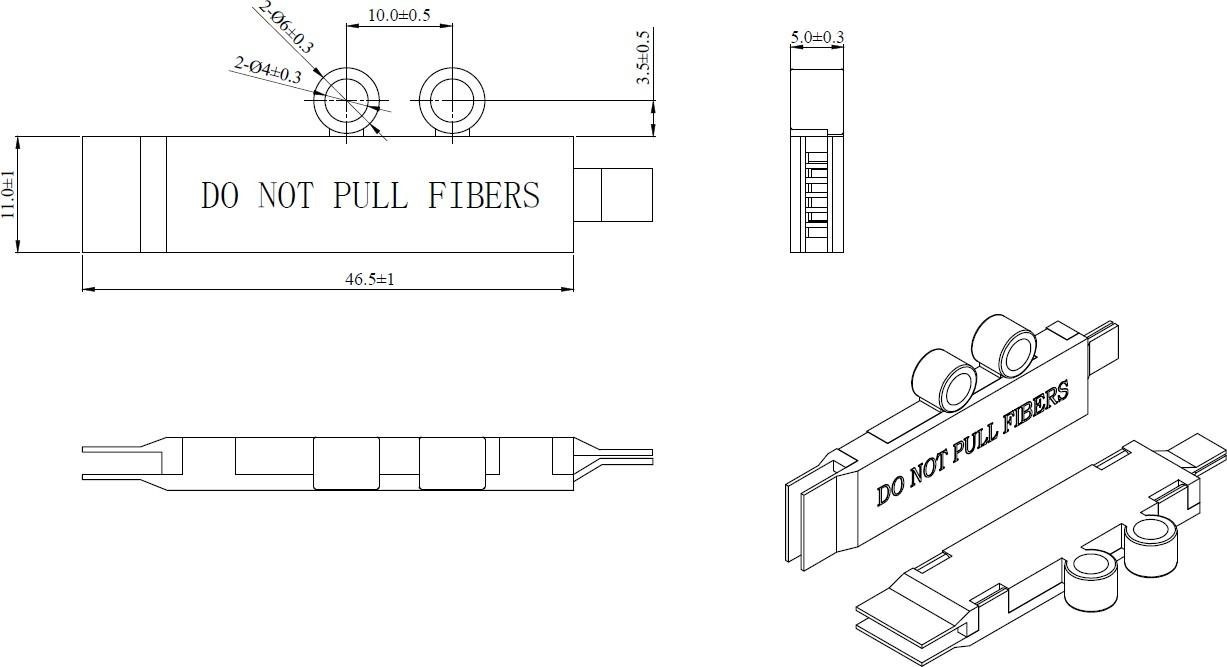

Figure 4 Fan-out planar Drawing
