SC/APC Connector 24-432F Fiber Optic Pigtail Fanout for Fast and Easy Installations

Ask Lasest Price
Brand Name :	Dawnergy
Model Number :	DA-SC-XXM-SM-FO-0.9L
Certification :	ANATEL,CE,ROHS
Price :	1500 USD
Payment Terms :	T/T, L/C, D/A, D/P
Supply Ability :	100000pcs per day

Add to Cart

Product Details
Company Profile

SC/APC Connector 24-432F Fiber Optic Pigtail Fanout for Fast and Easy Installations

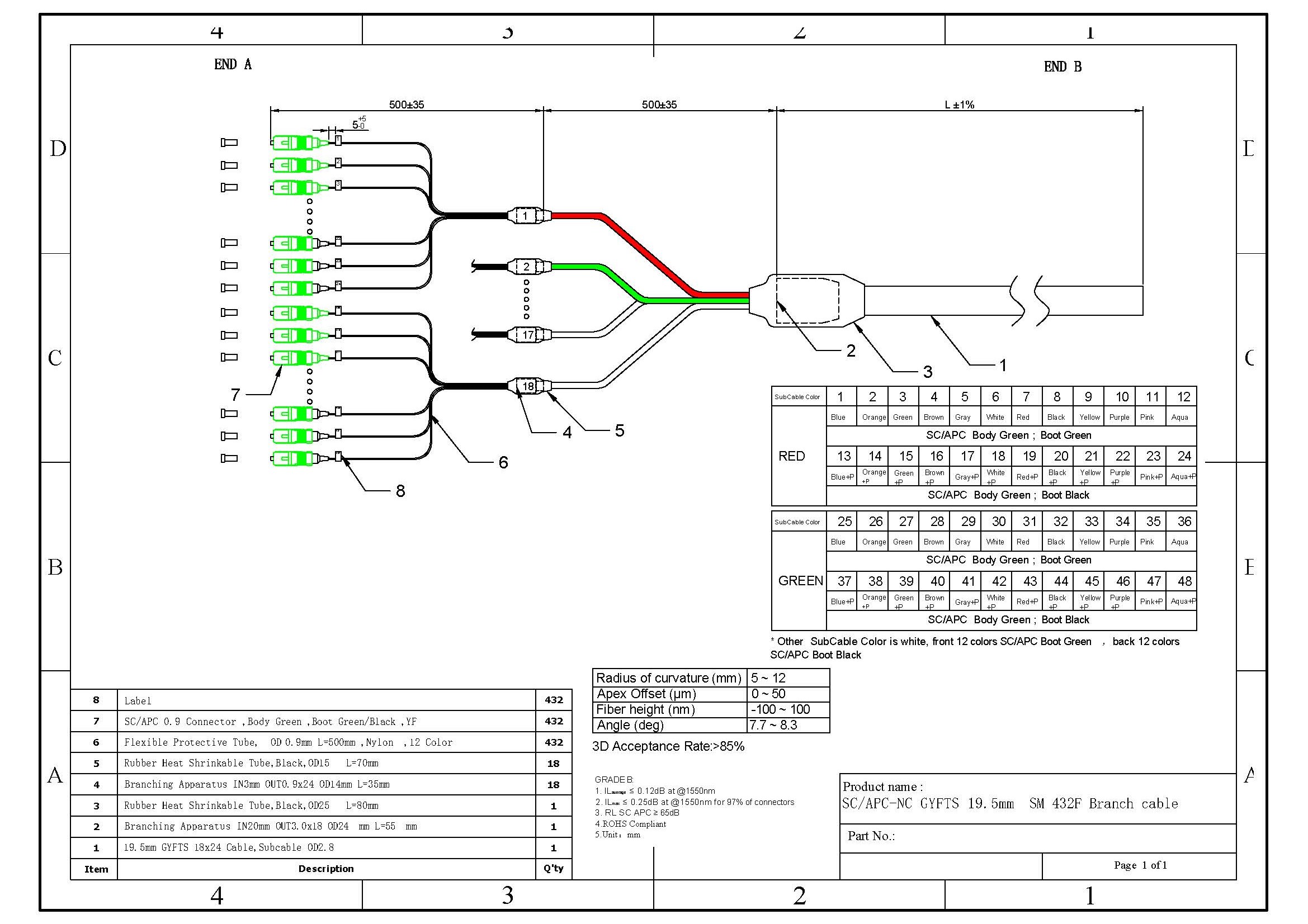

12~432F Fiber Optic Pigtail Fanout

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Features

Low insertion loss
High return loss
Good repeatability
High temperature stability

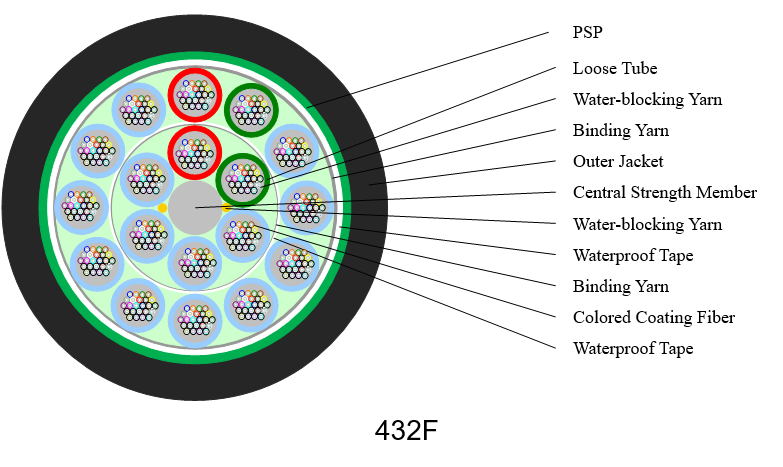

Cable Profile View

Cable Parameters

Items		Specifications
Fiber Count		24~432F
Colored Coating Fiber	Dimension	250µm±15µm
Colored Coating Fiber	Color	Blue,Orange,Green,Brown, Grey,Natural,Red,Black, Yellow,Purple,Pink,Aqua
Colored Coating Fiber wish Color Point	Dimension	250µm±15µm
Colored Coating Fiber wish Color Point	Color	Blue,Orange,Green,Brown, Gray,White,Red,Black, Yellow,Purple,Pink,Aqua
Fibers in One Tube		12 fibers (24,48F) 24 fibers (288,432F)
Loose Tube	Dimension	1.95 mm±0.05mm (24, 48F) 2.8mm±0.1mm (288,432F)
	Material	PBT
	Color	Blue,Orange,Green,Brown (24,48F) Red,Green,Natural,Natural, Natural,Natural,Natural,Natural, Natural,Natural,Natural,Natural (288,432F)
Central Strength Member	Diameter	1.5mm (24, 48F) 3.0mm (288F) 2.8mm (288F)
Central Strength Member	Material	FRP
Outer Jacket	Dimension	9.8 mm±0.5mm (24, 48F) 19.0mm±0.5mm (288F) 19.5 mm±0.5mm (432F)
	Material	PE
	Color	Black

Mechanical and Environmental Characteristics

Items	Unite	Specifications
Tension(Long Term)	N	600 (24, 48F) 1000 (288,432F)
Tension(Short Term)	N	1500 (24, 48F) 3000 (288,432F)
Crush(Long Term)	N/10cm	300
Crush(Short Term)	N/10cm	1000
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	℃	-10～+50
Operating Temperature	℃	-20～+60
Storage Temperature	℃	-20～+60

Ferrule End Face Inspection Criteria

Defects	Zone A (Area Near Core) ≤40um	Zone B (Cladding) 40~125um	Zone C (Coating) 125~250um
Scratch (width)	None	Light scratch (white): None	>3um: None
		Dark scratch (black): None
Pits & Irremovable material (Diameter)	None	≥2um: None <2um: 2pcs allowed	≥10um: None <10um: total<20um
Chipping (Diameter)	None
Crack/dust/contamination	None
Epoxy ring	Width<2um, total length≤1/2 fiber diameter

Ferrule End Face Geometry Parameters

Parameters	UPC	APC
Radius of Curvature	10~25mm	5~12mm
Fiber Undercut or Protrusion	≤ 100 nm	≤ 100 nm
Apex Offset	≤ 50 μm	≤ 50 μm
Polishing Angle		8 +/- 0.3 degree
